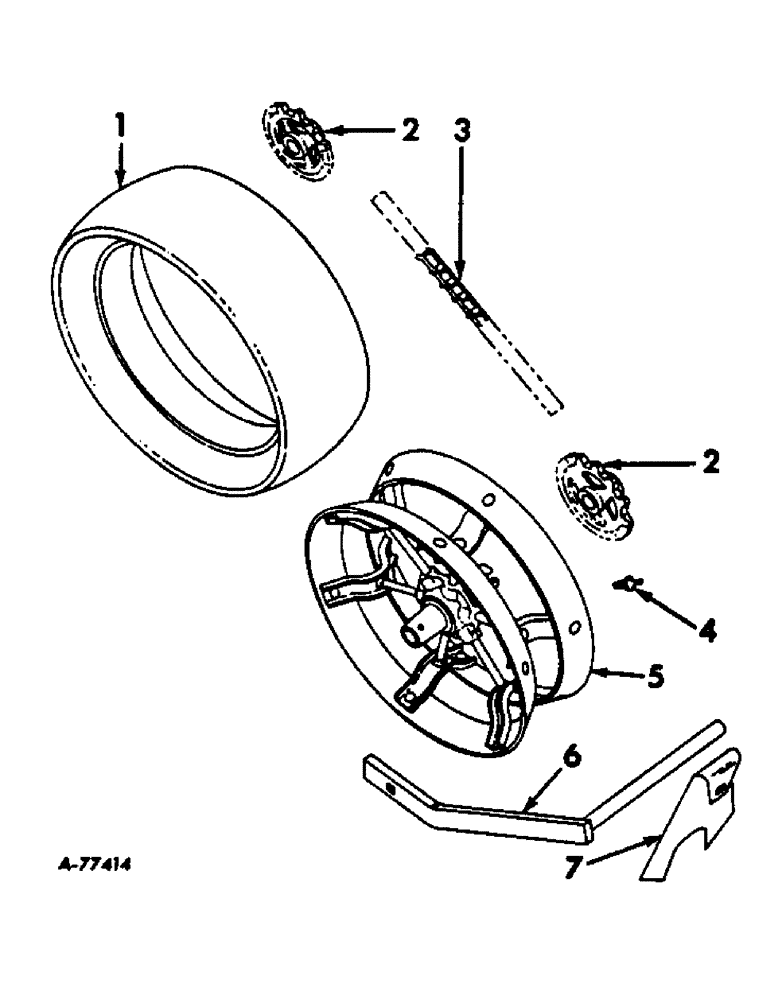

Запчасти Case IH 686 (F-17) - OPEN CENTER PRESS WHEEL, WHEEL SCRAPERS AND ZERO-PRESSURE

1

622855R1

TYRE/TIRE

TIRE, zero pressure, 8 x 20 in.

1шт.

1

477312R1

TYRE/TIRE

TIRE, zero pressure traction type 8 x 20 in. dia

1шт.

2

PO1763

DRIVE SPROCKET

SPROCKET, feedshaft or axle, 7-T, for 20 in. press wheel

1шт.

471210R1

PIN

sprocket

1шт.

585614R1

PIN

.072 x 1-7/16 quick-attachable cotter

1шт.

2

PO2754

DRIVE SPROCKET

SPROCKET, feedshaft or axle, 9-T, for 20 in. press wheel

1шт.

2

PO2639BX

SPROCKET ASSY.

SPROCKET W/SET SCREW, feedshaft or axle, 12-T, for 20 in. press wheel, for 486, 489, 686 and 689 planters

1шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

SCREW, 7/16 x 3/4 sq-hd cup-pt set

1шт.

2

515502R21

SPROCKET ASSY.

SPROCKET W/SET SCREW, feedshaft or axle, 14-T, for 20 in. press wheel

1шт.

2

PO2678AX

SPROCKET W/SET SCREW, feedshaft or axle, 16-T, for 20 in. press wheel, for 488 and 689 planters

1шт.

102894

SET SCREW

3/8 x 3/4 sq-hd cup-pt set

1шт.

3

CHAIN, drive, use 14 no. 32 steel links from a 10 ft roll marked CS-32, for 486, 489, 686 and 689 planters

1шт.

3

CHAIN, drive, use no. 16 steel links from a 10 ft roll marked CS-32, for 488 and 689 planters

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, In wheel hub 1/8"-27 x .66 lg

1шт.

5

471246R91

NO LONGER SERVICED

WHEEL ASSY, 8 x 20 in. dia.

1шт.

PO19374

RIVET, 3/8 x 25/32, special-hd

12шт.

6

468490R91

ARM, scraper, for 20 in. press wheel

1шт.

15091R1

BOLT, 1/2 x 2-1/4 crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

1шт.

7

13504AB

SCRAPER, for 6-1/2 x 20 in. press wheel

1шт.

7

622850R1

SCRAPER, for 8 x 20 in. press wheel

1шт.

15039R1

BOLT

3/8 x 1-1/2 crg

1шт.

102635

NUT,3/8"-16, G5

1шт.
