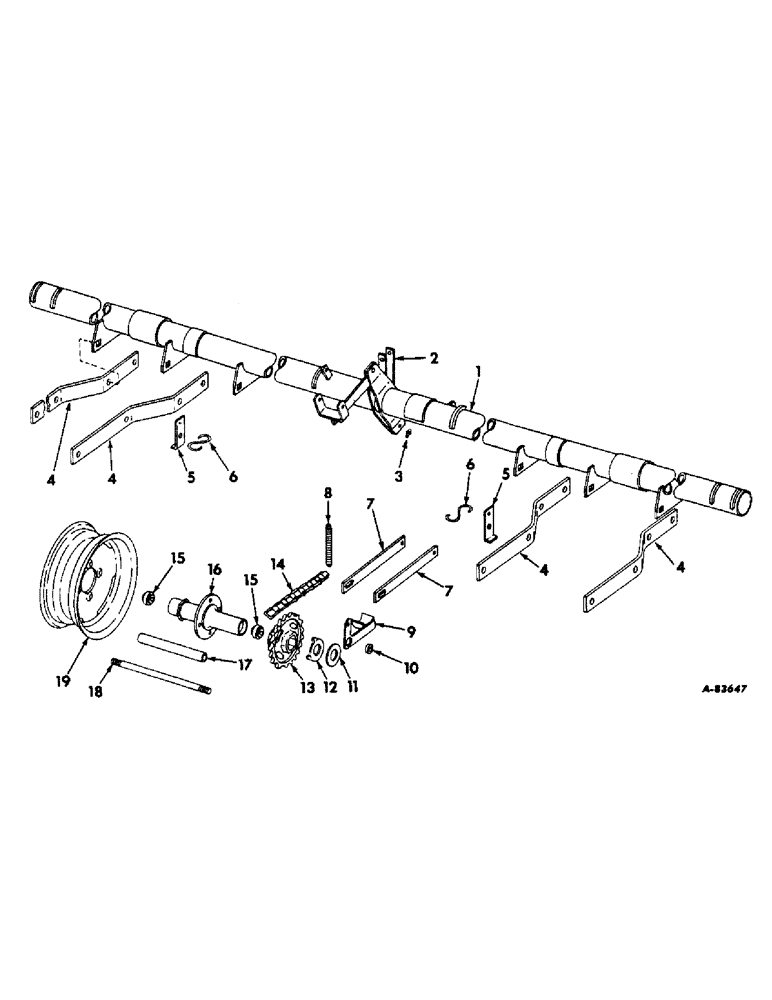

Запчасти Case IH 658 (L-07) - ADJUSTABLE WHEEL FRAME

1

480046R92

FRAME ASSY, adjustable wheel, 28 to 40 in. row spacing

1шт.

2

472275R1

BEARING

cylinder bracket

1шт.

3

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracket arm

1шт.

4

480048R1

ARM, wheel offset

4шт.

15058R1

BOLT, 5/8 x 1-3/4 crg-hd

8шт.

102639

NUT,5/8"-11, G5

8шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

473562R1

ANCHOR, spring

2шт.

6

474374R1

HOOK

S-HOOK

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

472299R1

LINK

transport

2шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2 std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

8

2072A

VALVE SPRING

SPRING, chain tightener

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

2шт.

9

472293R91

LEVER

ARM ASSY, drive chain tightener LH

1шт.

9

472294R91

LEVER

ARM ASSY, drive chain tightener RH

1шт.

10

472297R1

WASHER

BUSHING, chain tightener

2шт.

11

472298R2

WASHER

retaining

2шт.

12

479136R1

WASHER

sprocket wear

2шт.

13

472279R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16T

2шт.

14

CHAIN, main wheel drive, use 55 links of 50H steel chain from 10 ft. roll marked CS-50H

1шт.

15

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

wheel axle ball

4шт.

16

472278R2

HUB CAP

HUB, wheel

2шт.

17

464435R1

SPACER

wheel axle

2шт.

18

472280R2

ROD

AXLE, wheel

2шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

19

463036R1

WHEEL (STEERING)

WHEEL ASSY, planter drive, 14 x 5J rim for 7.50 x 14 or 8.00 x 14 tires

2шт.

19

455169R92

WHEEL

ASSY, planter drive, 15 x 4-1/2 rim for 6.70 x 15 tires

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.
