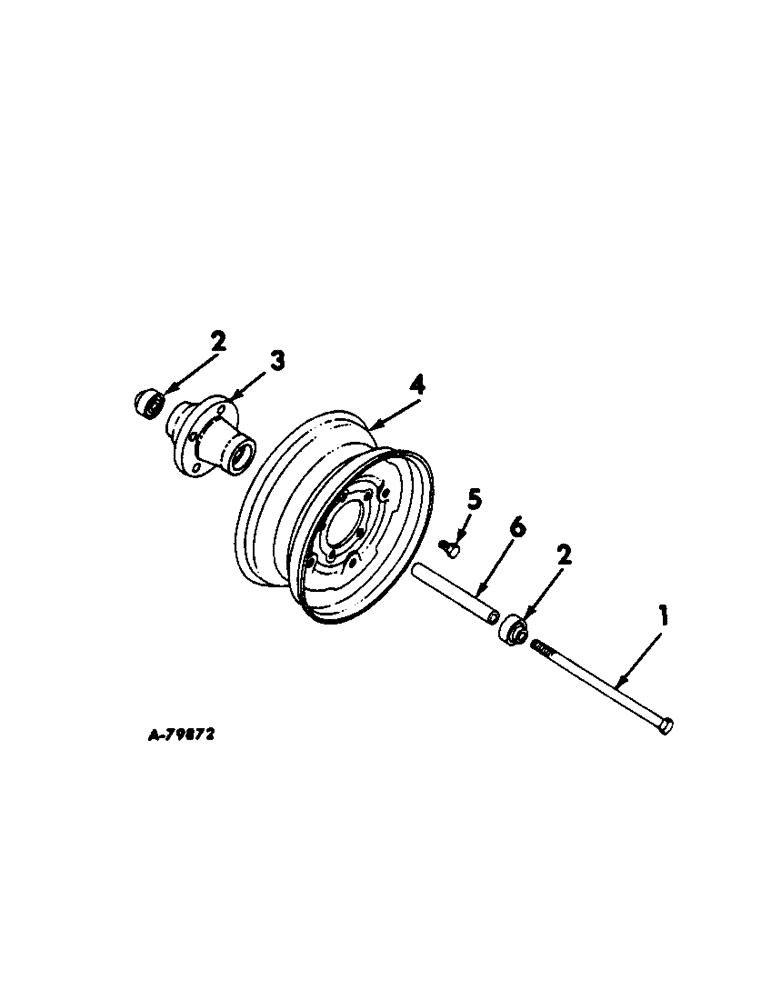

Запчасти Case IH 612 (H-05[A]) - WHEEL AND AXLE

1

18002R1

BOLT (SPREADER)

BOLT, 3/4-10 x 9 hex-hd mach, six row

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

1

18002R1

BOLT (SPREADER)

BOLT, 3/4-10 x 9 hex-hd mach, twelve row

4шт.

220081

NUT

3/4-10 hex.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

469025R91

BEARING

ASSY, wheel ball, six row

4шт.

2

469025R91

BEARING

ASSY, wheel ball, twelve row

8шт.

3

471797R1

HUB, drive wheel, six row

2шт.

3

471797R1

HUB, drive wheel, twelve row

4шт.

4

456599R91

WHEEL ASSY, disk and rim, six row

2шт.

4

456599R91

WHEEL ASSY, disk and rim, twelve row

4шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub, six row

10шт.

5

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub, twelve row

20шт.

6

471798R1

SPACER, wheel bearing, six row

2шт.

6

471798R1

SPACER, wheel bearing, twelve row

4шт.
