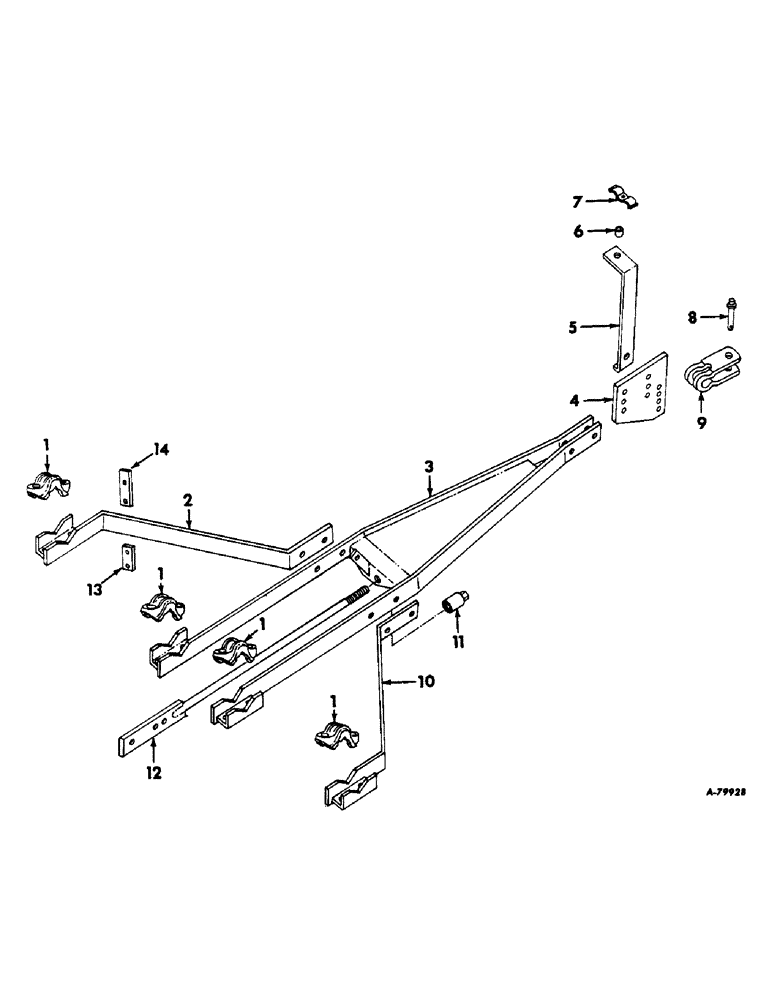

Запчасти Case IH 612 (H-04) - HITCH PARTS, BRACES, CLEVIS & HOSE SUPPORT

1

523962R2

CLAMP

CAP, hitch rail and hitch brace

4шт.

218200

NUT,7/8"-14, G5

7/8-14 hex.

8шт.

17166R1

SCREW, 7/8-14 x 5-1/4 hex-hd cap

8шт.

2

471765R91

BRACE ASSY, hitch L.H.

1шт.

17553R1

BOLT (SPREADER)

BOLT, 3/4-10 x 2-1/4 hex-hd mach

2шт.

220081

NUT

3/4-10 hex.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

471758R91

HITCH ASSY

1шт.

4

469064R1

PLATE, hitch

1шт.

17605R1

BOLT, 3/4-10 x 2-3/4 hex-hd mach

1шт.

17630R1

BOLT

3/4-10 x 3 he x-hd mach

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

525134R2

SUPPORT, hose

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2

1шт.

129-410

WING NUT,3/8"-16

NUT, 3/8-16 wing

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1597

WASHER

13/32 x 3/4 x 16 ga

1шт.

6

2813B

BUSHING, hose clamp

1шт.

7

515030R1

CLAMP

hose

2шт.

8

SA3420

PIN, hitch clevis

1шт.

520175R1

CLIP

PIN, quick attachable cotter

1шт.

9

526040R2

CLEVIS, hitch

1шт.

520121R1

PIN, 7/8 x 3-1/16 std-hd

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

PO12898

WASHER

29/32 x 1-1/2 x 11 ga

2шт.

10

471766R91

BRACE ASSY, hitch R.H.

1шт.

17553R1

BOLT (SPREADER)

BOLT, 3/4-10 x 2-1/4 hex-hd mach

2шт.

220081

NUT

3/4-10 hex.

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

469056R91

ADJUSTER ASSY, wheel control rod

1шт.

12

471769R91

ROD ASSY, wheel control

1шт.

218443

NUT

3/4-10 hex. jam

1шт.

13

556973R1

CLIP, tool bar extension inside stop, twelve row

4шт.

14

471795R1

CLIP, tool bar extension outside stop, twelve row

4шт.

15073R1

BOLT, 1/2-13 x 2 sq-nk crg

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.
