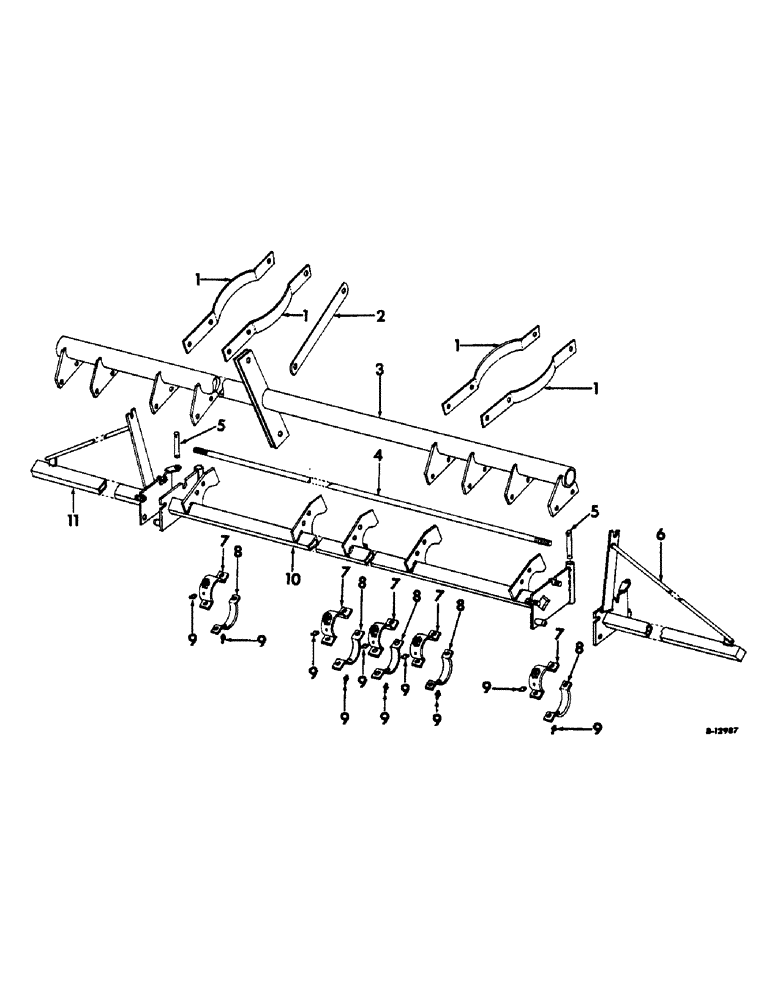

Запчасти Case IH 612 (H-03) - MAIN FRAME

1

471789R1

RAIL, wheel, six row

4шт.

17526R1

BOLT, 3/4-10 x 3 hex-hd mach

8шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

1

471789R1

RAIL, wheel, twelve row

8шт.

17526R1

BOLT, 3/4-10 x 2 hex-hd mach

16шт.

220081

NUT

3/4-10 hex.

16шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

2

471791R1

ARM, cylinder lift

1шт.

3

471783R91

ROCKSHAFT ASSY

1шт.

F18422

AXLE PIN

PIN, 3/4 x 2-1/4 std-hd

3шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

3шт.

4

471796R1

ROD, truss center, twelve row

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

615196R1

WASHER

29/32 x 1-3/4 x 11 ga

4шт.

5

471782R1

PIN, tool bar extension hinge, twelve row

2шт.

13140R1

PIN, 5/16 x 1-3/4 self opening cot.

4шт.

6

471775R91

EXTENSION ASSY, tool bar, LH, twelve row

1шт.

7

472014R91

BEARING ASSY, rockshaft

5шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2-13 x 1-3/4 hex-hd mach

5шт.

102637

NUT,1/2"-13, G5

5шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

8

472015R1

BEARING, rockshaft half

5шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

10шт.

102637

NUT,1/2"-13, G5

10шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

10шт.

31696H

WASHER, 17/32 x 1-1/2 x 16 ga, (or as required)

10шт.

9

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, in support bearing

10шт.

10

472010R91

TOOL BAR ASSY, inner

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex.

4шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

4шт.

11

471776R91

EXTENSION ASSY, tool bar, RH, twelve row

1шт.
