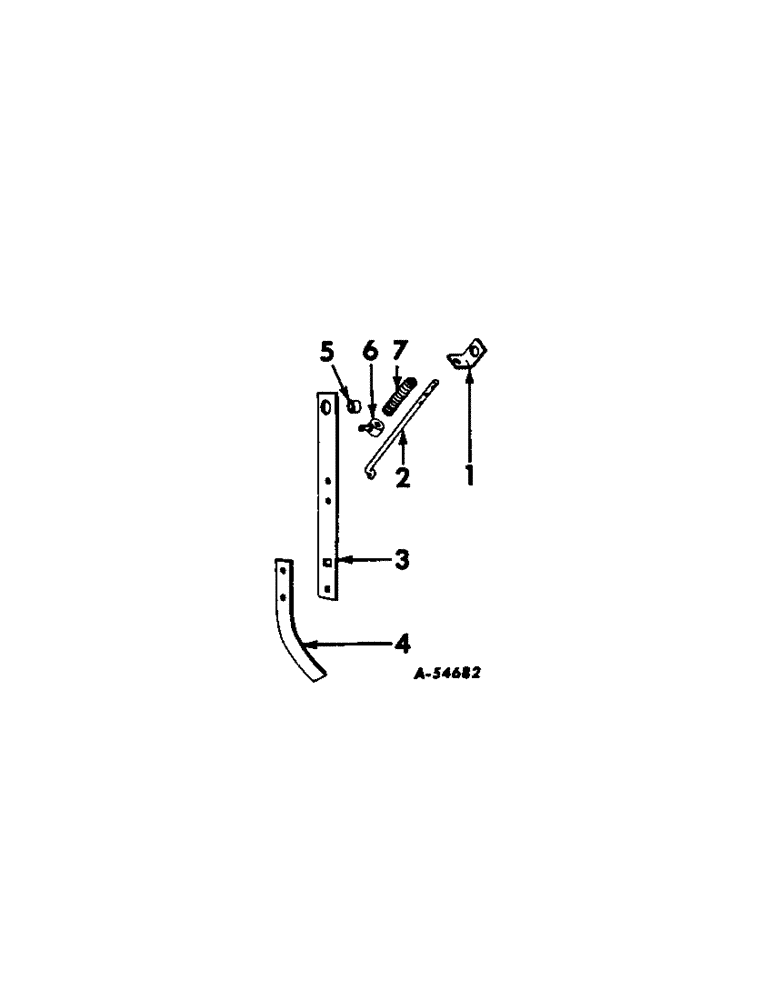

Запчасти Case IH 612 (H-10[A]) - COVERING BLADE ATTACHMENT

1

526248R1

ANGLE

BRACKET, pressure rod

2шт.

2

526249R1

ROD

pressure

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

3

526250R1

BAR

ARM, covering blade

2шт.

31696H

WASHER, 17/32 x 1-1/2 x 16 ga, on bolt in rear parallel linkage

2шт.

4

621582R1

SUPPORT

BLADE, left

1шт.

4

621583R1

BLADE

right

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16-18 x 3/4 hex-hd mach

2шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16-18 x 3/4 hex-hd mach

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

524679R1

BUSHING

covering blade arm

2шт.

6

514547R11

COLLAR CLAMP

COLLAR ASSEMBLY, pressure rod

2шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 sq-hd cup-pt set

2шт.

7

11100D

SPRING

pressure

2шт.
