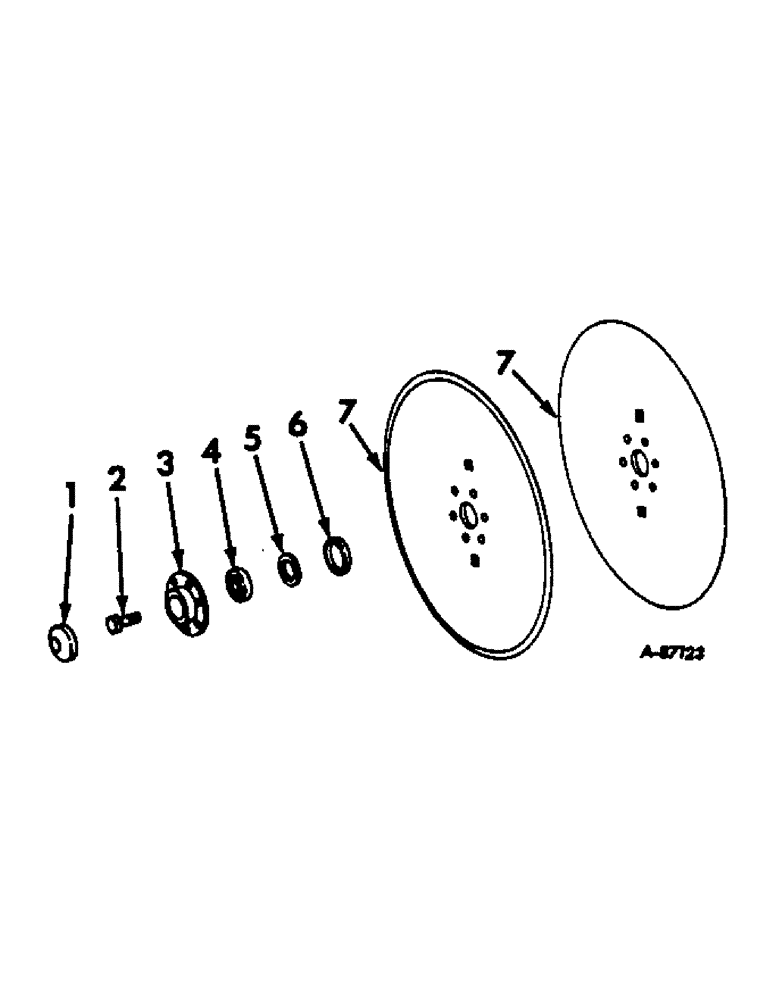

Запчасти Case IH 612 (H-08) - DOUBLE DISK OPENER, ONE PER ROW

1

603012R1

DUST CAP

CAP, bearing housing dirt

2шт.

2

524673R1

BOLT,5/8" - 11 x 1 1/8", LH Thd

disk bearing, LH thd, 1963 thru 1964

1шт.

2

464481R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", LH

BOLT, disk bearing, LH thd, 1965 and since

1шт.

2

524674R1

BOLT,5/8" - 11 x 1 1/8", RH Thd

disk bearing, RH thd, 1963 thru 1964

1шт.

2

464482R1

BOLT (SPREADER),Hex, 5/8" - 11 x 1.44", RH

BOLT, disk bearing, RH thd, 1965 and since

1шт.

3

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING, disk bearing

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 rd-hd

12шт.

4

133214R91

BEARING LOCK NUT

BEARING ASSY, disk ball, 1963 thru 1964, order 479838R91, 479844R1, 479845R1, 464481 or 464481R1

2шт.

4

479838R91

BALL BEARING,17mm ID x 40mm OD x 16.6mm W

ASSY, disk ball, 1965 and since

2шт.

5

524675R1

WASHER

spacer, 1963 thru 1964

2шт.

5

479844R1

WASHER

spacer, 1965 and since

2шт.

6

479845R1

WASHER

bearing

2шт.

7

524676R1

DISK HARROW

DISK, opener 12-1/2 in. dia.

2шт.

481045R91

DISC

DISK AND BEARING ASSEMBLY, consists of the following items

1шт.

524676R1

DISK HARROW

DISK

1шт.

479844R1

WASHER

1шт.

479845R1

WASHER

1шт.

479838R91

BALL BEARING,17mm ID x 40mm OD x 16.6mm W

1шт.

602989R1

FLANGE,1.41" ID x 3.25" OD x 0.63"

HOUSING

1шт.

104081

RIVET,But Hd, 1/4" x 1/2"

S

6шт.
