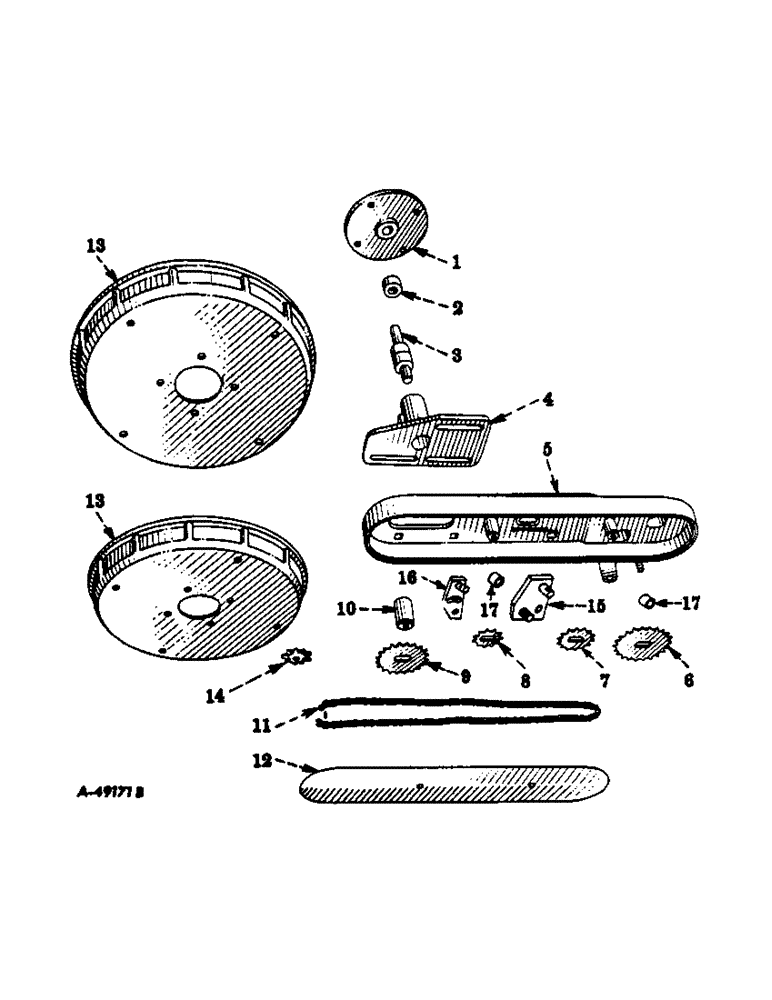

Запчасти Case IH 612 (H-07) - DRIVE SHAFT, HOUSING AND WHEEL
№
Артикул
Название
Примечание
Количество
1
524617R1
HUB
drive wheel, six row
6шт.
17425
SPRING,2 1/2" ID x 3 1/8" OD x 1/16" Thk, Rubber, SAE 10R3, Gr SB7152 1/2" ID x 3 1/8" OD x 1/16" Thk, Rubber, SAE 10R3, Gr SB715
BOLT, 5/16-18 x 1 hex head mach
24шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
24шт.
1
524617R1
HUB
drive wheel, twelve row
12шт.
17425
SPRING,2 1/2" ID x 3 1/8" OD x 1/16" Thk, Rubber, SAE 10R3, Gr SB7152 1/2" ID x 3 1/8" OD x 1/16" Thk, Rubber, SAE 10R3, Gr SB715
BOLT, 5/16-18 x 1 hex head mach
48шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
48шт.
2
524661R1
SEALING WASHER
drive shaft, six row
6шт.
2
524661R1
SEALING WASHER
drive shaft, twelve row
12шт.
3
ST637
BEARING
W/SHAFT, drive wheel ball, six row
6шт.
3
ST637
BEARING
W/SHAFT, drive wheel ball, twelve row
12шт.
4
524616R1
BRACKET
drive shaft, six row
6шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8-16 x 1-1/4 sq-nk crg
6шт.
15039R1
BOLT
3/8-16 x 1-1/2 sq-nk crg
12шт.
109084
NUT,1/4"-20, G5
6шт.
102635
NUT,3/8"-16, G5
18шт.
102928
SCREW, 1/4-20 x 7/8 sq-hd cone-pt set
6шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
18шт.
Q1504
WASHER
13/32 x 7/8 x 16 gal.
18шт.
4
524616R1
BRACKET
drive shaft, twelve row
12шт.
86508749
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
BOLT, 3/8-16 x 1-1/4 sq-nk crg
12шт.
15039R1
BOLT
3/8-16 x 1-1/2 sq-nk crg
24шт.
109084
NUT,1/4"-20, G5
12шт.
102635
NUT,3/8"-16, G5
36шт.
102928
SCREW, 1/4-20 x 7/8 sq-hd cone-pt set
12шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
36шт.
Q1504
WASHER
13/32 x 7/8 x 16 gal.
36шт.
5
471419R1
HOUSING
drive, six row
6шт.
5
471419R1
HOUSING
drive, twelve row
12шт.
6
524665R1
SPROCKET ASSY.
SPROCKET, 22-teeth, six row
6шт.
6
524665R1
SPROCKET ASSY.
SPROCKET, 22-teeth, twelve row
12шт.
7
524663R1
SPROCKET ASSY.
SPROCKET, 14 teeth, six row
6шт.
7
524663R1
SPROCKET ASSY.
SPROCKET, 14 teeth, twelve row
12шт.
8
524662R1
SPROCKET ASSY.
SPROCKET, 11 teeth, six row
6шт.
8
524662R1
SPROCKET ASSY.
SPROCKET, 11 teeth, twelve row
12.шт.
9
524664R1
SPROCKET ASSY.
SPROCKET, 20 teeth, six row
6шт.
524664R1
SPROCKET ASSY.
SPROCKET, 20 teeth, twelve row
12шт.
10
471421R1
HUB
rear drive, six row
6шт.
180168
SCREW,Hex, 1/2" - 13 x 5/8", Gr 5
1/2-13 x 5/8 C-Z hex head cap
6шт.
120384
WASHER,1/2"
LOCK, 1/2"
6шт.
11002VA
WASHER
17/32 x 7/8 x 16 gal.
6шт.
10
471421R1
HUB
rear drive, twelve row
12шт.
180168
SCREW,Hex, 1/2" - 13 x 5/8", Gr 5
1/2-13 x 5/8 C-Z hex head cap
12шт.
120384
WASHER,1/2"
LOCK, 1/2"
12шт.
11002VA
WASHER
17/32 x 7/8 x 16 gal.
12шт.
11
471422R91
CHAIN ASSY., drive, six row, composed of 47 riveted links, 25 riveted links, two connecting links, 524791R91 and two offset links, 524792R91
6шт.
11
471422R91
CHAIN ASSY., drive, twelve row, composed of 47 riveted links, 25 riveted links, two connecting links, 524791R91 and two offset links, 524792R91
12шт.
12
471420R1
COVER, drive housing, six row
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
12
471420R1
COVER, drive housing, twelve row
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
24шт.
13
517239R1
RIM, half wheel, six row
12шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16-18 x 1/2 C-Z hex head mach
12шт.
120376
NUT,5/16"-18, G5
12шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
13
517239R1
RIM, half wheel, twelve row
24шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16-18 x 1/2 C-Z hex head mach
24шт.
120376
NUT,5/16"-18, G5
24шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
24шт.
14
461913R11
SPROCKET, 9 tooth drive, one per row for 4 in. seed spacing
1шт.
15
(Not used)
1шт.
16
(Not used)
1шт.
17
(Not used)
1шт.
461917R1
TYRE/TIRE
TIRE, drive wheel, zero pressure 4 x 16 in. ribbed tread
1шт.
524666R1
TYRE/TIRE
TIRE, drive wheel, zero pressure 4 x 16 in. traction tread
1шт.
524790R91
LINK
roller
1шт.
For drive chain
1шт.
524791R91
LINK
connecting
1шт.
For drive chain
1шт.
524792R91
LINK
offset
1шт.
For drive chain
1шт.
524793R1
PIN, offset link
1шт.
For drive chain
1шт.
