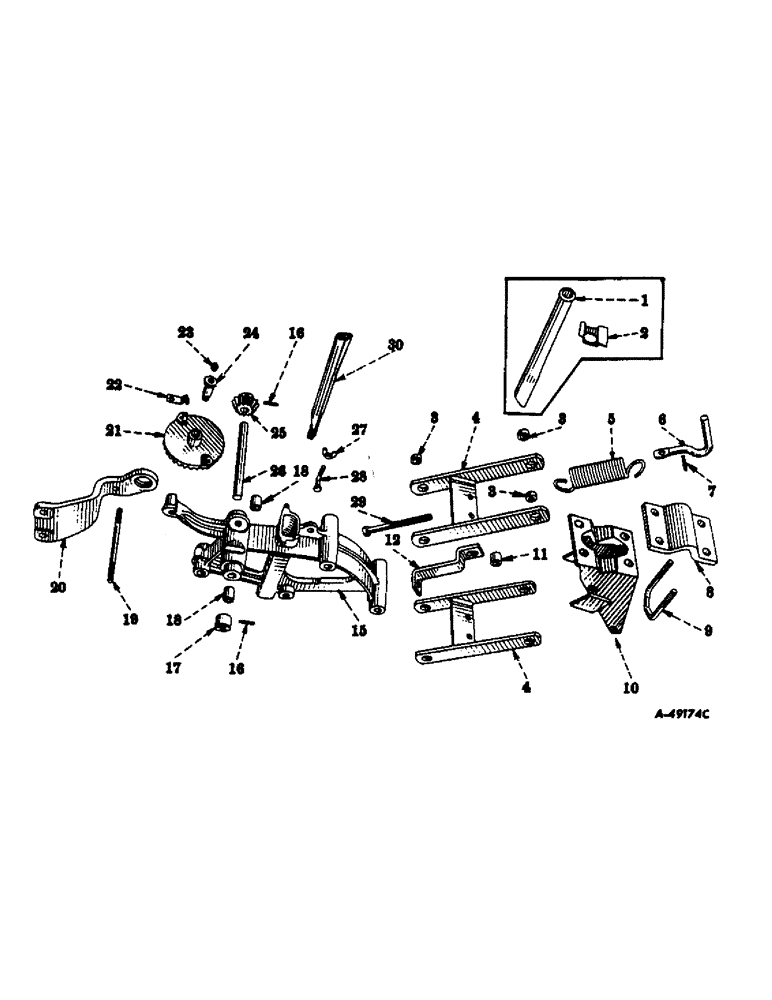

Запчасти Case IH 612 (H-06) - BOOT, HOPPER DRIVE AND PARALLEL LINKAGE

1

524684R1

TUBE, beet seed, one per row, Serial Range: 1963-1964

1шт.

464628R1

SEAL

beet seed tube, Serial Range: 1963-1964

1шт.

2

524683R1

BRACKET, tube support, one per row, Serial Range: 1963-1964

1шт.

3

650927R1

SPACER

BUSHING, parallel link, six row

42шт.

3

650927R1

SPACER

BUSHING, parallel link, twelve row

84шт.

4

524653R91

LINK

AGE ASSY, parallel, six row

12шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2-13 x 1-1/2 hex-hd mach

24шт.

17906R1

BOLT, 1/2-13 x 6-1/2 hex-hd mach

12шт.

102637

NUT,1/2"-13, G5

36шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

36шт.

Q5035

WASHER

17/32 x 1 x 16 ga.

36шт.

4

524653R91

LINK

AGE ASSY, parallel, twelve row

24шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2-13 x 1-1/2 hex-hd mach

48шт.

17906R1

BOLT, 1/2-13 x 6-1/2 hex-hd mach

24шт.

102637

NUT,1/2"-13, G5

72шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

72шт.

Q5035

WASHER

17/32 x 1 x 16 ga.

72шт.

5

524660R1

VALVE SPRING

SPRING, pressure, six row, also depth adjusting spring

12шт.

5

524660R1

VALVE SPRING

SPRING, pressure, twelve row, also depth adjusting spring

24шт.

6

471119R1

HOOK

CLIP, spring, six row

12шт.

6

471119R1

HOOK

CLIP, spring, twelve row

24шт.

7

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, , six row 3/16" x 1 1/4", Slotted

12шт.

7

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, , twelve row 3/16" x 1 1/4", Slotted

24шт.

8

524654R2

CLAMP

CAP, tool bar clamp, six row

6шт.

8

524654R2

CLAMP

CAP, tool bar clamp, twelve row

12шт.

9

524686R2

BOLT

U-BOLT, toolbar, six row

12шт.

102637

NUT,1/2"-13, G5

24шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

24шт.

9

524686R2

BOLT

U-BOLT, toolbar, twelve row

24шт.

102637

NUT,1/2"-13, G5

48шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

48шт.

10

471117R91

BRACKET ASSY, tool bar, six row

6шт.

10

471117R91

BRACKET ASSY, tool bar, twelve row

12шт.

11

524646R1

BUSHING

parallel link & depth adj bracket, six row

6шт.

11

524646R1

BUSHING

parallel link & depth adj bracket, twelve row

12шт.

12

524668R2

BRACKET, depth adjusting, six row

6шт.

12

524668R2

BRACKET, depth adjusting, twelve row

12шт.

13

(Not used)

1шт.

14

(Not used)

1шт.

15

524624R31

BOOT

ASSY, seed, six row

6шт.

15

524624R31

BOOT

ASSY, seed, twelve row

12шт.

16

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

6шт.

16

455182R1

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

12шт.

17

466610R1

FITTING

HUB, front drive, six row

6шт.

17

466610R1

FITTING

HUB, front drive, twelve row

12шт.

18

524658R1

BUSHING

drive shaft, six row

12шт.

18

524658R1

BUSHING

drive shaft, twelve row

24шт.

19

524649R1

BOLT, adjusting, six row

6шт.

102635

NUT,3/8"-16, G5

24шт.

19

524649R1

BOLT, adjusting, twelve row

12шт.

102635

NUT,3/8"-16, G5

48шт.

20

524619R2

BRACE

drive housing, six row

6шт.

NLSR1

BOLT, 1/2-13 x 1-1/2 sq-nk crg

12шт.

102637

NUT,1/2"-13, G5

12.шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

20

524619R2

BRACE

drive housing, twelve row

12шт.

NLS

NO LONGER SERVICED

BOLT, 1/2-13 x 1-1/2 sq-nk crg

24шт.

102637

NUT,1/2"-13, G5

24шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

24шт.

21

464257R1

GEAR

31-teeth bevel, six row

6шт.

21

464257R1

GEAR

31-teeth bevel, twelve row

12шт.

22

(Not used)

1шт.

23

126098

FITTING

5/16 drive type str lub, in drive gear stud, six row

6шт.

23

126098

FITTING

5/16 drive type str lub, in drive gear stud, twelve row

12шт.

24

464143R11

STUD

ASSY, drive gear, six row

6шт.

24

464143R11

STUD

ASSY, drive gear, twelve row

12шт.

25

524615R1

GEAR

PINION, 12-teeth bevel, six row

6шт.

25

524615R1

GEAR

PINION, 12-teeth bevel, twelve row

12шт.

26

466609R1

STUD

SHAFT, drive gear, six row

6шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

6шт.

26

466609R1

STUD

SHAFT, drive gear, twelve row

12шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

12шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

12шт.

27

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing, six row

6шт.

27

129-419

WING NUT,5/16"-18

NUT, 5/16-18 C-Z wing, twelve row

12шт.

28

624479R1

ROD,Hex, 5/16" - 18 x 2 1/4", Bent

BOLT, hopper hold down, six row

6шт.

Q399

WASHER

11/32 x 1 x 16 ga

6шт.

28

624479R1

ROD,Hex, 5/16" - 18 x 2 1/4", Bent

BOLT, hopper hold down, twelve row

12шт.

Q399

WASHER

11/32 x 1 x 16 ga

12шт.

29

524611R1

BOLT,Hex, 1/2" x 4 3/4"

depth adjusting, six row

6шт.

102637

NUT,1/2"-13, G5

12шт.

29

524611R1

BOLT,Hex, 1/2" x 4 3/4"

depth adjusting, twelve row

12.шт.

102637

NUT,1/2"-13, G5

24шт.

480033R1

TUBE

beet seed, one per row, 1965 and since

1шт.
