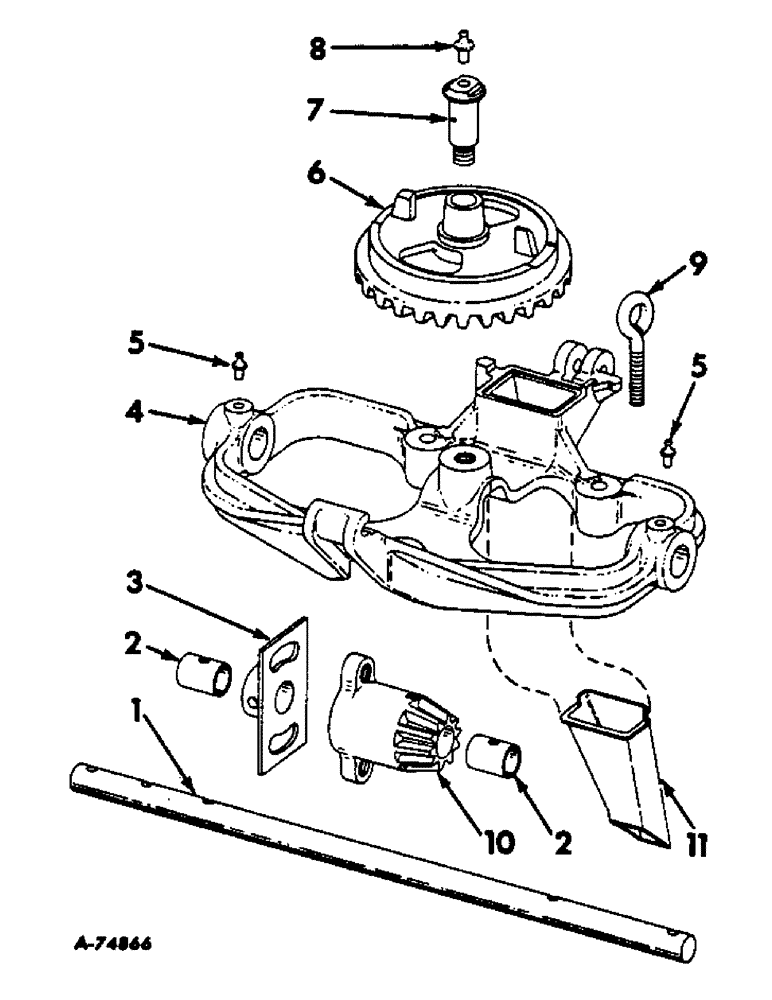

Запчасти Case IH 488 (F-07) - HOPPER DRIVE, FOR 488 AND 688 PLANTERS

1

468425R2

SHAFT, feed, 4 for 488 planter, 6 for 688 planter

1шт.

PIN, /4 x 1-1/4 self-opening cotter, 4 for 488 planter, 6 for 688 planter

1шт.

585614R1

PIN

.072 x 1-7/16 quick-attachable cotter, 4 for 488 planter, 6 for 688 planter

1шт.

471210R1

PIN

1/4 x 1-21/32 chamfered std-hd, for sprockets, 4 for 488 planter, 6 for 688 planter

1шт.

WASHER, 25/32 x 1-1/2 x 16 ga, 8 for 488 planter, 12 for 688 planter

1шт.

2

527132R1

BUSHING,19.06mm ID x 22.21mm OD x 25.4mm L

feed shaft, brz, 8 for 488 planter, 12 for 688 planter

1шт.

BOLT W/NUT, 3/8 x 1-3/4 mach, 8 for 488 planter, 12 for 688 planter

1шт.

BOLT, 1/2 x 1-3/4 mach, 4 for 488 planter, 6 for 688 planter

1шт.

WASHER, 3/8 lock, 8 for 488 planter, 12 for 688 planter

1шт.

WASHER, 1/2 lock, 4 for 488 planter, 6 for 688 planter

1шт.

3

468428R91

PLATE, timing, 4 for 488 planter, 6 for 688 planter

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z mach, 8 for 488 planter, 12 for 688 planter

1шт.

PIN, 1/8 x 3/4 self-opening cotter, 4 for 488 planter, 6 for 688 planter

1шт.

Q3514

HEADED PIN,1/4" x 1 9/16"

PIN, 1/4 x 1-9/16 dld-std-hd, 4 for 488 planter, 6 for 688 planter

1шт.

WASHER, 3/8 C-Z lock, 8 for 488 planter, 12 for 688 planter

1шт.

WASHER, 13/32 x 13/16 x 16 ga C-Z, 8 for 488 planter, 12 for 688 planter

1шт.

4

468422R11

BRACKET, hopper, 4 for 488 planter, 6 for 688 planter

1шт.

5

Q3852

FITTING

1/4 straight drive type lub, 8 for 488 planter, 12 for 688 planter

1шт.

6

468424R2

GEAR, ring, 40T, 4 for 488 planter, 6 for 688 planter

1шт.

7

469751R1

STUD, drive gear, 4 for 488 planter, 6 for 688 planter

1шт.

8

273356

SPARE PART

FITTING, 5/16 straight drive type lub, 4 for 488 planter, 6 for 688 planter

1шт.

9

471195R1

BOLT (SPREADER)

EYEBOLT, C-Z hopper hold-down, 4 for 488 planter, 6 for 688 planter

1шт.

129-419

WING NUT,5/16"-18

NUT, 5/16 wing, 4 for 488 planter, 6 for 688 planter

1шт.

U5349

PIN

5/16 x 1-5/16 dld-std-hd, 4 for 488 planter, 6 for 688 planter

1шт.

PIN, 1/8 x 3/4 self-opening cotter, 4 for 488 planter, 6 for 688 planter

1шт.

134238

WASHER

11/32 x 1 x 16 ga C-Z, 4 for 488 planter, 6 for 688 planter

1шт.

10

468427R1

PINION, bevel, 10T, 4 for 488 planter, 6 for 688 planter

1шт.

11

468447R1

SPOUT, hopper bracket, 4 for 488 planter, 6 for 688 planter

1шт.
