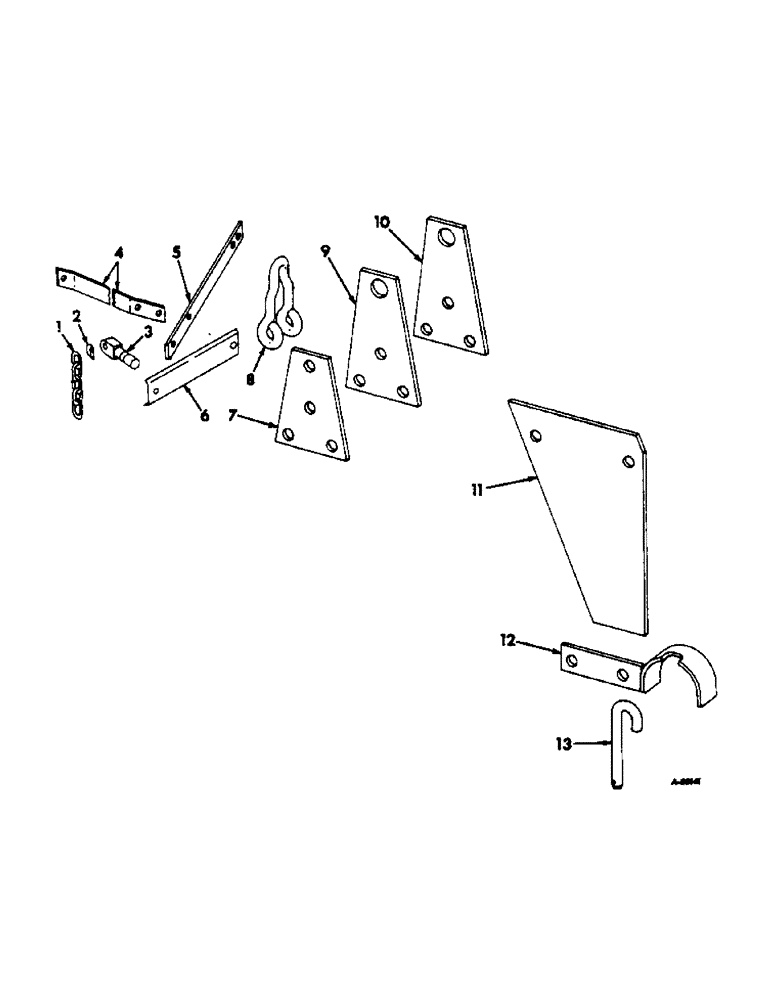

Запчасти Case IH 488 (F-28) - COMPLETING PACKAGES, FRONT AND REAR SUPPORT BRACES AND LIFT

1

471452R1

CHAIN, lift, 20 links, units A and B

2шт.

1

472954R1

CHAIN, lift, 31 links, units C and D

2шт.

2

PO26868A

WASHER, chain indicator

2шт.

3

523090R1

PIN

EYEBOLT, hitch rockshaft, units A, B and D, 2 for unit D

1шт.

13139R1

PIN, 1/4 x 1-3/4 self-opening cotter

2шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

3

376504R1

EYEBOLT

hitch rockshaft, unit C

1шт.

13120R1

Pin, Split (Cotter), 3/16" x 1 1/2", self-opening 3/16" x 1 1/2"

1шт.

4

471602R1

BRACKET, support rear, units A and C

2шт.

4

471605R1

BRACE, support rear, unit B

2шт.

4

471604R1

BRACKET, support rear, unit D, Serial Range: 1962-1965

2шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

SCREW, 3/4 x 1-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

483672R1

BRACE, support rear LH, units D and E

1шт.

4

483673R1

BRACE, support rear RH, units D and E

1шт.

5

471603R1

BRACE, support front, units D and E

2шт.

5

471601R1

BRACE, support front, units, A, B and C

2шт.

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

SCREW, 3/4 x 1-1/4 hex-hd cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

477101R1

STRIP, rub, unit B

1шт.

17601R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

1/2-13 x 2-3/4 hex-hd mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

102637

NUT,1/2"-13, G5

2шт.

7

471579R1

BRACKET, chain

4шт.

17650R1

BOLT, 1/2-13 x 3-1/4 hex-hd mach

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

102637

NUT,1/2"-13, G5

6шт.

477527R1

PIN

1/2 x 2-7/8 std-hd

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

2шт.

8

471584R1

CLEVIS, chain

2шт.

Q784

PIN

3/4 x 2-15/16 std-hd

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

13066R1

WASHER, 25/32 x 1-1/2 x 16 ga 1/8" x 1"

2шт.

9

483674R1

BRACKET, lift outside, unit E

2шт.

10

483675R1

BRACKET, lift inside, unit E

2шт.

11

483676R1

PLATE, rub, unit E

2шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

12

483677R91

BRACKET ASSY, spacer LH, unit E

1шт.

12

483678R91

BRACKET ASSY, spacer RH, unit E

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

13

471572R1

PIN, beam locating, unit E

2шт.

520175R1

CLIP

PIN, quick attachable cot

2шт.
