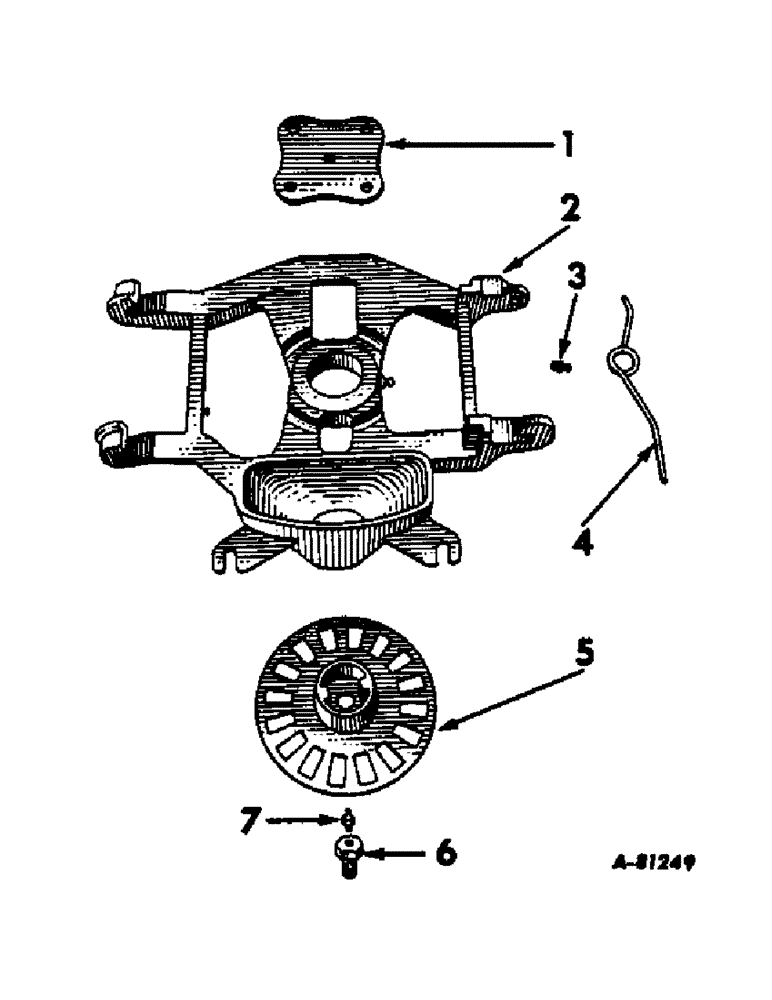

Запчасти Case IH 466 (J-36) - DRIVE PLATE, FOR TYPE C DUPLEX HOPPER W/COMBINATION HOPPER

1

479918R1

PLATE, drive

1шт.

2

517091R11

BRACKET W/LUB. FITTING ASSY, adapter

1шт.

Q3532

AXLE PIN

PIN, 5/16 x 2-11/16 hdd, std. #77

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , Ext. prong 1/8" x 3/4"

1шт.

3

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 drive type str lub

1шт.

4

PO17885

SPRING, hopper hold-down

1шт.

5

479919R1

PLATE, bearing

1шт.

17548R1

BOLT, 3/8-16 x 2-1/4 hex-hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

479917R1

BOLT, ring gear

1шт.

7

66584D

FITTING

3/16 drive type str lub, in ring gear bolt

1шт.
