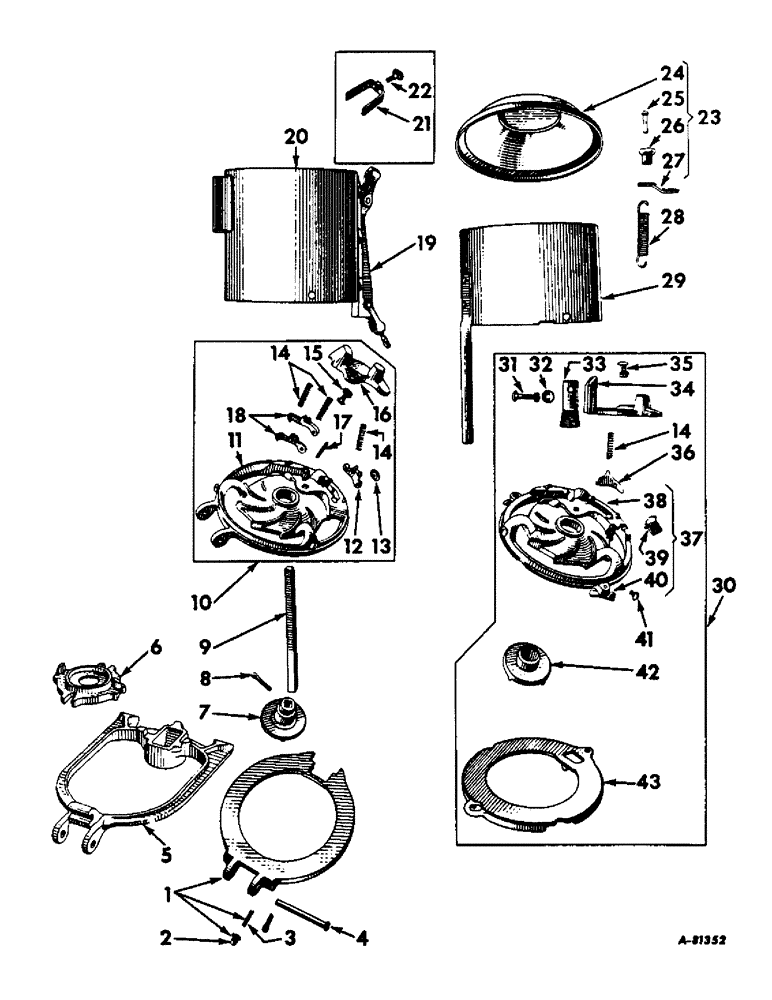

Запчасти Case IH 466 (J-33) - CORN AND PEA HOPPER ATTACHMENT

1

43251A

PLATE ASSY, corn hopper bottom

1шт.

2

13787AA

CAP, hopper bottom plate

2шт.

3

13786AA

SPRING

bottom plate

2шт.

4

M79594

PIN,5/16" x 3 1/4"

5/16 x 3-1/4 std-hd

1шт.

13034R1

PIN, 1/8 x 5/8 self-opening cot.

1шт.

5

520179R1

BRACKET, hopper adapting

1шт.

L418C

HEADED PIN,5/16" x 2 3/8"

PIN, 5/16 x 2-3/8 std-hd

1шт.

13034R1

PIN, 1/8 x 5/8 self-opening cot.

1шт.

6

520182R2

PLATE, hopper driving

1шт.

7

1877A

DISK, corn hopper driving

1шт.

8

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

9

2580AA

SHAFT, pea hopper drive

1шт.

10

13174AE

BOTTOM ASSY, corn hopper

1шт.

11

BOTTOM, corn hopper, order 13174AE bottom assy

1шт.

12

464336R11

KNOCKER

ARM ASSY, roller knocker

1шт.

13

464259R1

ROLLER

KNOCKER, roller

1шт.

14

2064A

SPRING

cut-off and knock-out, in corn hopper

3шт.

14

2064A

SPRING

cut-off and knock-out, in pea hopper

1шт.

15

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

16

3005AB

CAP, pawl, in hopper bottom

1шт.

17

2000AA

PIN

cut-off pawl hinge

1шт.

18

23936A

PAWL

ASSY

1шт.

19

3030A

CHUTE, pea

4шт.

104235

RIVET,FH, 3/16" x 1/2"

6шт.

20

23116AC

HOPPER ASSY, corn

1шт.

21

1886AX

LINK W/THUMB SCREW ASSY, hopper latch

2шт.

22

13826A

SCREW, 5/16 x 3/4 thumb

2шт.

102441

SCREW, 5/16-18 x 1/2 sq-hd oval-pt set

2шт.

23

622114R92

LID ASSY, pea hopper

1шт.

24

COVER, order 622114R92 lid assy

1шт.

25

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 rd-hd solid

1шт.

26

1793A

BUTTON, hopper cover

1шт.

27

2505AA

CONNECTOR, cover spring

1шт.

28

A4

SPRING, cover

1шт.

29

23117AD

HOPPER ASSY, pea

1шт.

30

23115AD

BOTTOM ASSY, pea hopper

1шт.

31

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2 sq-neck crg, used in brush to pawl cap

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

32

Q397

WASHER

11/32 x 3/4 x 16

1шт.

33

2250A

BRUSH, COMMUTATOR

BRUSH, cut-off

1шт.

34

3013AB

CAP, pawl, pea hopper

1шт.

35

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

36

3460AC

KNOCKER

PAWL, knock-out, pea hopper

1шт.

37

23541AB

BOTTOM W/GATE AND LOCK ASSY, pea hopper

1шт.

38

BOTTOM, pea hopper, order 23115AD bottom assy

1шт.

39

13607AB

HINGE

GATE, hinged

1шт.

40

1920AA

LOCK, pea hopper bottom

2шт.

104069

RIVET,But Hd, 3/16" x 3/4"

3/16 x 3/4 rd-hd solid

2шт.

41

138198

ARM

SCREW, 5/16 x 3/8 C-Z slt, in hopper bottom

6шт.

42

1932A

DISK, pea hopper driving, special, for dropping peas between corn hills

1шт.

42

1878A

DISK, pea hopper driving

1шт.

43

3029A

PLATE, pea hopper bottom

1шт.
