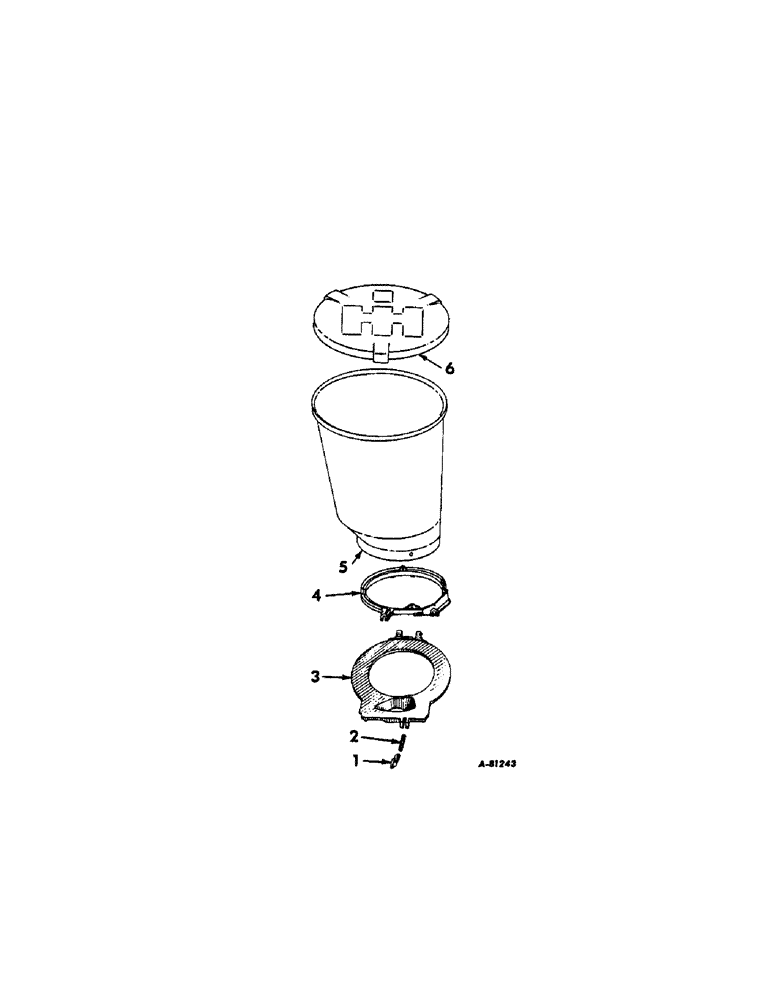

Запчасти Case IH 466 (J-30[A]) - COMBINATION SEED HOPPER, OFFSET SIDE

1

621710R1

LATCH

hopper bottom plate

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), , Ext prong 3/16" x 1"

1шт.

2

606245R1

SPRING

latch

1шт.

3

621704R2

PLOW BOTTOM

PLATE, hopper bottom

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

N95023

PIN, 5/16 x 3-5/8, std. no. 77

1шт.

4

478563R1

RING

combination hopper bottom

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt rd-hd mach

4шт.

611344R1

WASHER

11/32 x 7/8 x 16 ga C-Z

4шт.

138538

LOCK WASHER

WASHER, 5/16 C-Z int tooth lock

4шт.

5

478559R11

HOPPER

ASSY, fiberlgass offset side, 70 lbs capacity

1шт.

6

474852R1

COVER

polyethylene offset side hopper

1шт.
