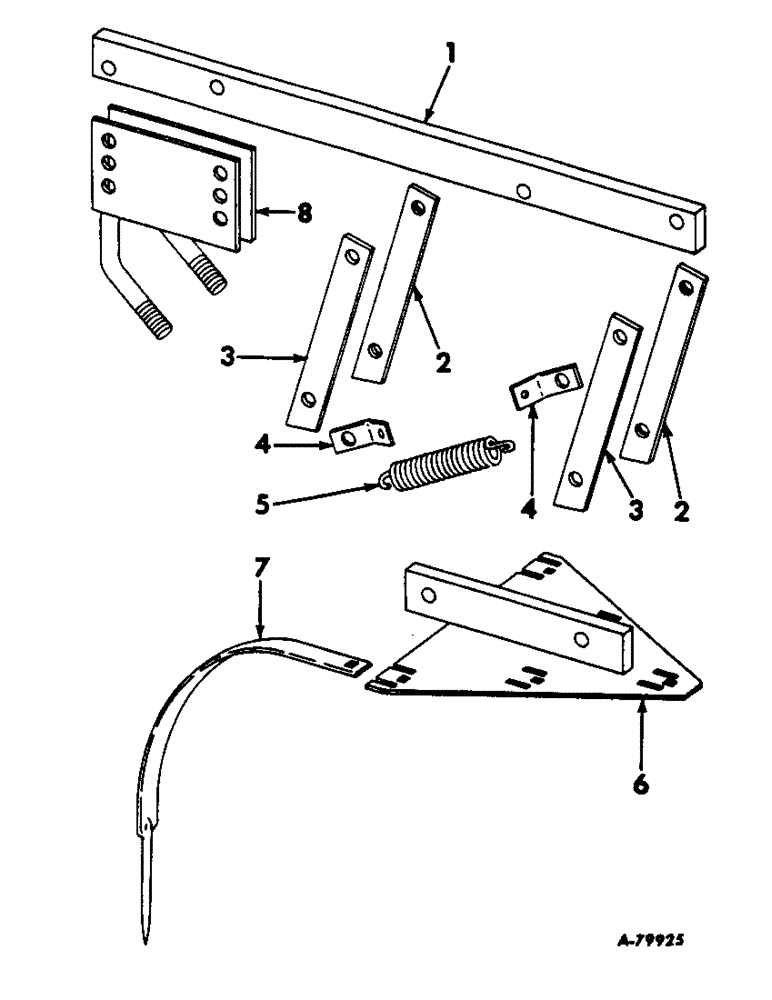

Запчасти Case IH 466 (J-26) - SPRING TOOTH TILLAGE ATTACHMENT

1

473582R1

BAR, attaching

1шт.

17523R1

BOLT, 1/2-13 x 2 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

473584R1

STRAP, pivot

2шт.

3

473583R1

STRAP, pivot

2шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

1/2-13 x 1-3/4 hex-hd mach

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

473585R1

ANCHOR, spring

4шт.

5

635503R1

SPRING,148.8mm Free Length

2шт.

6

473577R91

PLATE ASSY, tooth attaching

1шт.

7

16448B

SPRING

TOOTH, weeder

5шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 short sq-nk crg

5шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

NUT, 3/8-16 hex.

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

8

473580R91

PLATE ASSY, adjusting

1шт.
