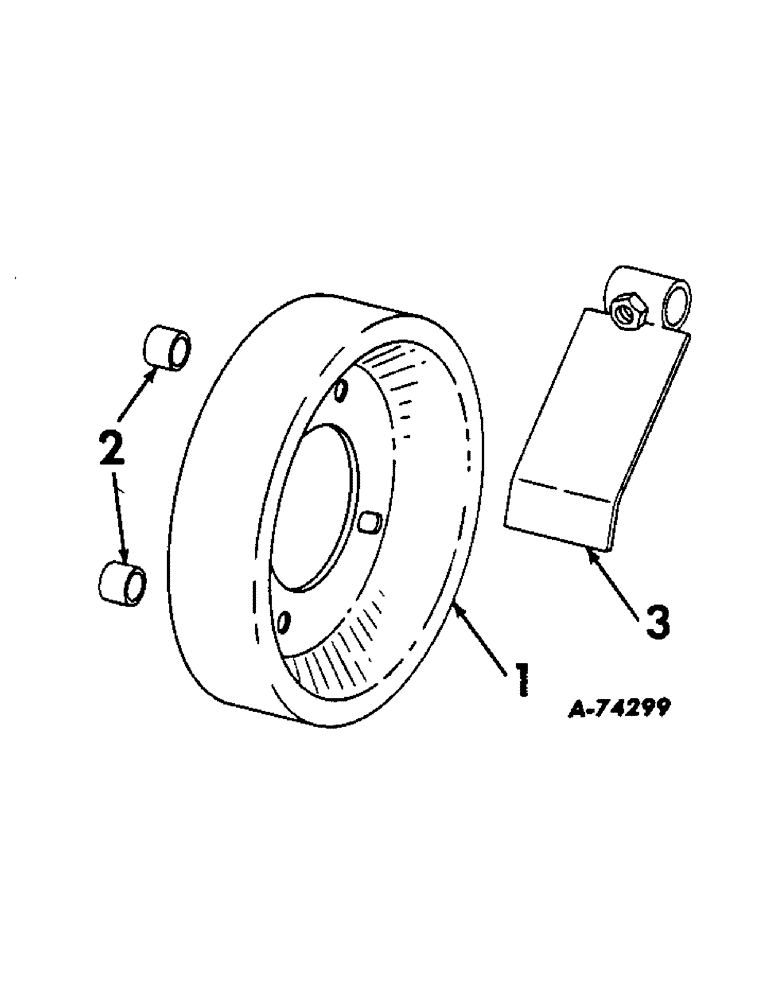

Запчасти Case IH 466 (J-23) - DEPTH BAND AND SCRAPER ATTACHMENT, ONE PER ROW

1

461915R1

DRUM

BAND, depth, 9/16 in. depth, 11-3/4 in. OD

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

42274H

SPACER

WASHER, 15/32 x 7/8 x 7 ga

4шт.

1

480908R1

BAND, depth, .750 in. depth, 11 in. OD

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z sq-nk crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1

465131R1

WHEEL

BAND, depth, 1 in. depth, 10.5 in. OD

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

1

524670R1

DRUM

BAND, depth, 1-1/4 in. depth, 9-7/8 in. OD

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

42274H

SPACER

WASHER, 15/32 x 7/8 x 7 ga

4шт.

1

465132R1

WHEEL

BAND, depth, 1-1/2 in. depth, 9.5 in. OD

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

1

524671R1

DRUM

BAND, depth, 2 in. depth, 8-3/8 in. OD

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

42274H

SPACER

WASHER, 15/32 x 7/8 x 7 ga

4шт.

1

524621R1

BAND, depth, 2-3/4 in. depth, 6-7/8 in. OD

2шт.

15039R1

BOLT

3/8-16 x 1-1/2 short-sq-nk crg

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

525820R1

SPACER,3/8" Pipe x .469"

depth band, for 9/16, 1-1/4 and 2 in. depth band

4шт.

3

471242R11

SUPPORT

SCRAPER ASSY, depth band

2шт.

102894

SET SCREW

3/8-16 x 3/4 sq-hd cup-pt set

2шт.
