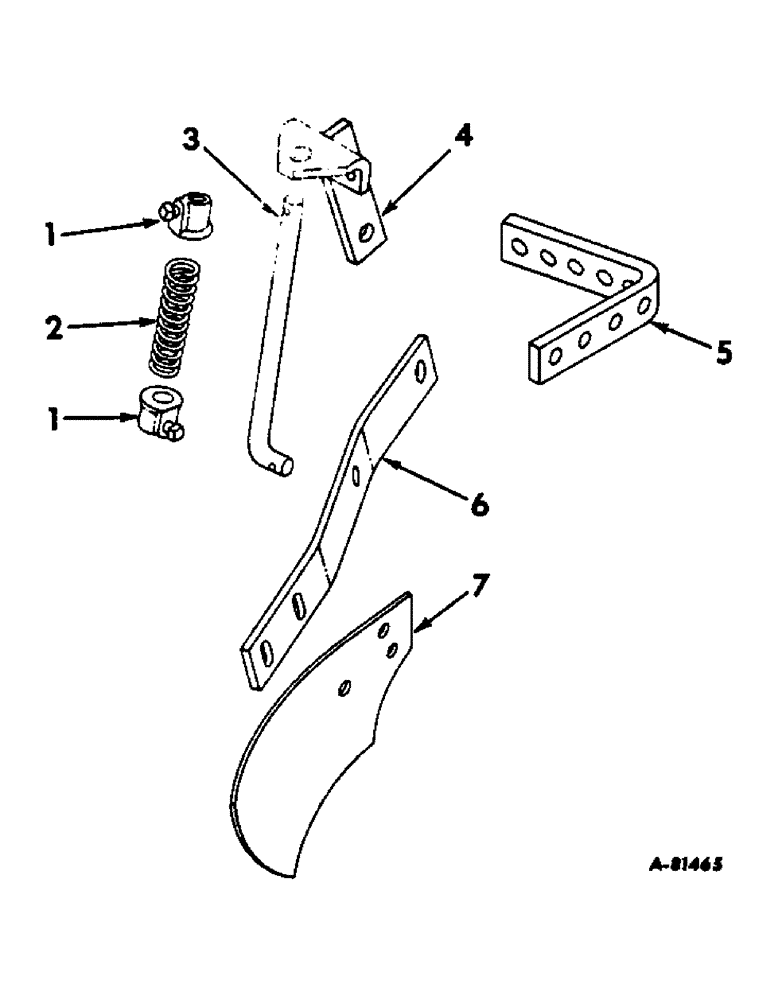

Запчасти Case IH 466 (J-16) - BLADE COVERING ATTACHMENT, WIDE, ONE PER ROW

1

517951R11

WEAR PAD

COLLAR W/SET SCREW, spring rod

4шт.

105111

FITTING

SCREW, 5/16-18 x 3/8 sq-hd cup-pt set

4шт.

2

NLS

NO LONGER SERVICED

spring rod

2шт.

3

464460R2

ROD

pressure spring

2шт.

13066R1

Pin, Split (Cotter), 1/8" x 1", self-opening 1/8" x 1"

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

4шт.

4

480458R91

BRACKET

ASSY, pivot

2шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 sq-nk crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

1/2 x 1-1/8 hex-hd mach

2шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

5

480461R1

BRACKET

attaching

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

6

480468R1

ARM

covering blade

2шт.

7

621426R2

BLADE

covering LH

1шт.

7

621427R2

BLADE

covering RH

1шт.

15425R1

BOLT, 5/16 x 1 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
