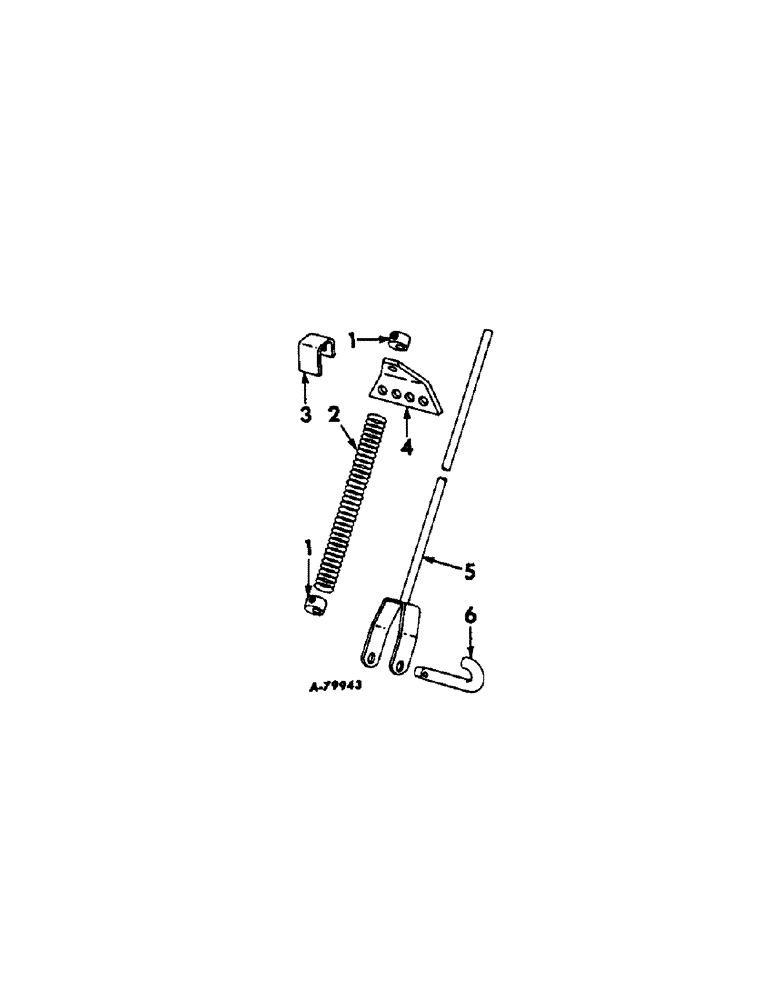

Запчасти Case IH 466 (J-15[A]) - COMPLETING PACKAGE LIFT RODS, ONE PER ROW

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 C-Z hex-hd cap

1шт.

3

477575R1

CHANNEL

marker chain guide w/o fertilizer

2шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

472324R1

BRACKET, lift rod, w/o fertilizer

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

472325R11

ROD ASSY, lift, w/o fertilizer

1шт.

13081R1

Pin, Split (Cotter), 3/16" x 1 1/8", self-opening 3/16" x 1 1/8"

2шт.

Q677

PIN

1/2 x 3-3/4 std-hd

1шт.

5

472385R11

ROD

ASSY, lift, w/fertilizer

1шт.

13081R1

Pin, Split (Cotter), 3/16" x 1 1/8", self-opening 3/16" x 1 1/8"

2шт.

6

472387R1

PIN, lift clevis, w/fertilizer

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.
