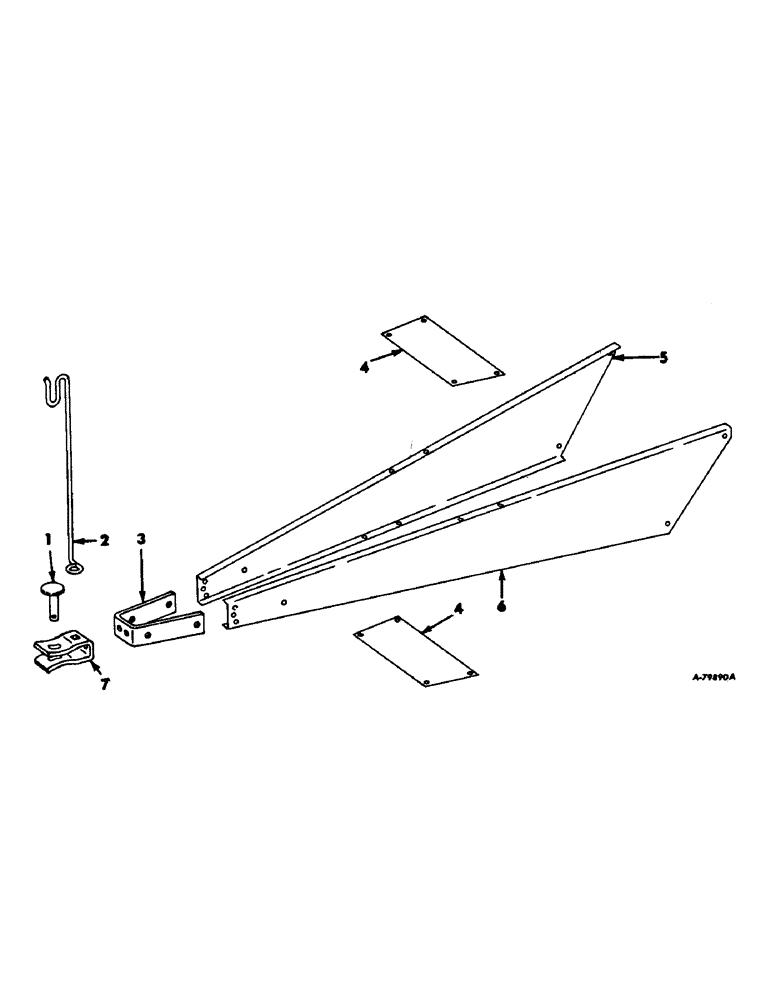

Запчасти Case IH 455 (G-06) - HITCH

1

480791R1

PIN

hitch

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

2

651793R1

SUPPORT

hyd hose

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2-13 x 1-1/2 short-sq-nk crg

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

PO10535

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

3

472232R1

BRACKET, clevis

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

102637

NUT,1/2"-13, G5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

472230R1

BAR

SHEET, hitch tie

2шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16-18 x 5/8 hex-hd mach

8шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

472227R92

TRAILER HITCH

HITCH ASSY, right

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

472226R92

HITCH ASSY, left

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

484505R1

YOKE

CLEVIS, hitch bracket

1шт.

102639

NUT,5/8"-11, G5

2шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
