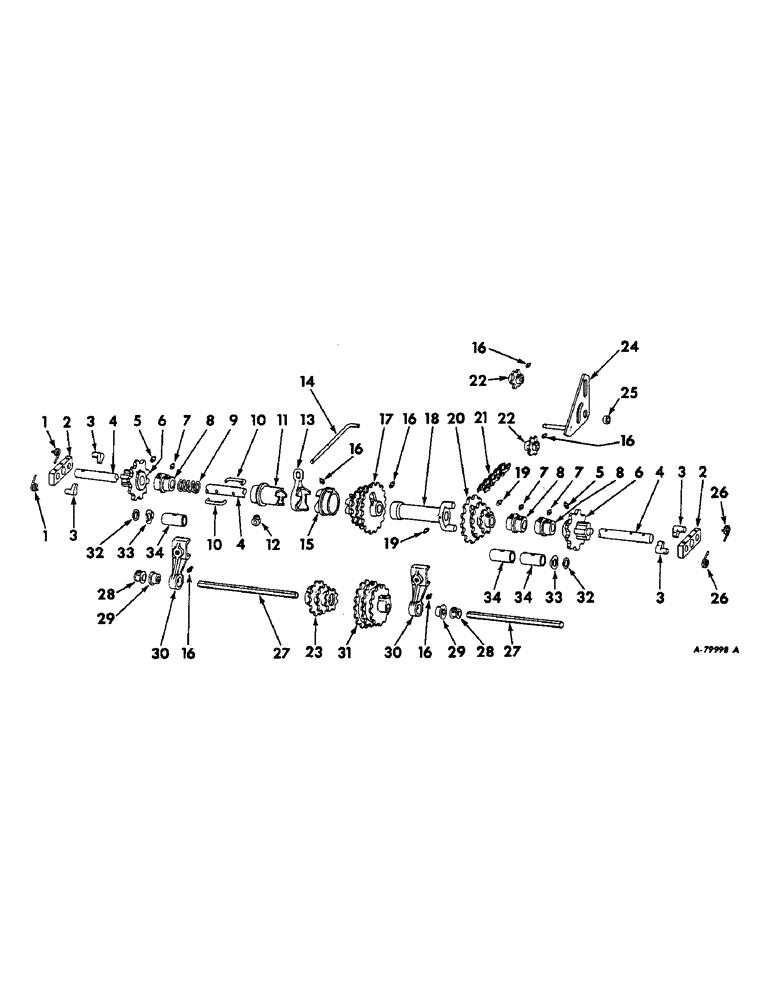

Запчасти Case IH 455 (G-04) - DRIVE UNIT

1

472721R1

SPRING

wheel ratchet LH

2шт.

2

472328R1

CARRIER

pawl

2шт.

522292R1

PIN,5/16" x 1 3/4"

5/16 x 1-3/4 std-hd

2шт.

13066R1

Pin, Split (Cotter), 1/8" x 1", self-opening 1/8" x 1"

2шт.

3

472329R1

PAWL

drive sprocket

4шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

4шт.

4

472330R1

SHAFT, main drive, Serial Range: 1963-1965

1шт.

4

479141R1

SHAFT

main drive, 1965 only, order one 481811R1, one 481812R11 and one 66584D

1шт.

4

481811R1

ROD

SHAFT, main drive, 1966 and since

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

4шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF 2 str lub, in main wheel driven sprocket

2шт.

6

472327R1

SPROCKET ASSY.

SPROCKET, main wheel driven, 10T, Serial Range: 1963-1965

2шт.

6

479140R1

DRIVE SPROCKET

SPROCKET, main wheel driven, 10T, 1966 and since

2шт.

7

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub, 1963 to 1965

3шт.

7

66584D

FITTING

3/16 drive type str lub, in bearing, 1966 and since

3шт.

8

625050R11

BEARING

ASSY, main drive shaft, Serial Range: 1933-1965

3шт.

8

481812R11

BEARING ASSY

ASSY, main drive shaft, 1966 and since

3шт.

9

269182R1

SPRING

clutch

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

10

PO23196

KEY

clutch

2шт.

11

472334R2

NO LONGER SERVICED

DRIVER, clutch

1шт.

12

514547R11

COLLAR CLAMP

COLLAR ASSY, control

1шт.

102881

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 sq-hd cup-pt set

1шт.

13

472332R1

DRIVE

CAM, clutch

1шт.

14

472331R1

ROD

CONTROL, clutch

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

3шт.

15

472333R1

BEARING

clutch

1шт.

479139R1

THRUST WASHER

clutch thrust

1шт.

16

66584D

FITTING

3/16 drive type lub

6шт.

17

472335R2

DRIVE SPROCKET

SPROCKET, main drive, 18T, 16T, 13T

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

1шт.

19746R1

PIN, 1/4 x 1-1/4 light coiled spring

1шт.

18

472433R2

COUPLING

CONNECTOR, drive sprocket

1шт.

19

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub, drive sprocket connector and fertilizer drive sprocket

2шт.

20

472434R1

SPROCKET ASSY.

SPROCKET, fertilizer drive, 17-T, 12-T and 8-T

1шт.

520037R1

PIN, quick attachable cot.

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

2шт.

21

CHAIN, drill shaft drive, use 39 links of 1 in. extended pitch agricultural roller chain from a 10 ft. roll marked 569088R91, 1 - 457113R91 straight connecting link and 1 - 457114R91 offset connecting link

1шт.

22

472344R1

SPROCKET

6-T idler

2шт.

23

472337R1

SPROCKET ASSY.

SPROCKET, main drill shaft, 12T, 10T, 8T

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

3/8-16 x 7/8 sq-hd cup-pt set

1шт.

24

472339R91

PLATE

ASSY, chain tightener

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

1/2-13 x 1-1/2 hex-hd mach

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2-13 x 1-1/2 short-sq-nk crg

1шт.

102637

NUT,1/2"-13, G5

2шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

190270

BOLT,Hex, 1/2" - 13 x 4 1/4"

SCREW, 1/2-13 x 4-1/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga, on hex-hd mach bolt

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga, on hex-hd mach bolt

1шт.

25

622567R1

WASHER

BUSHING, chain tightener

1шт.

26

472722R1

SPRING

wheel ratchet, RH

2шт.

27

472338R1

BAR

SHAFT, drill

1шт.

28

1431BX

COLLAR CLAMP

COLLAR ASSY, drill shaft

2шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13 x 3/4 sq-hd cup-pt set

2шт.

29

625569R1

HUB CAP

BEARING, insert

2шт.

30

472317R1

BRACKET

brg

2шт.

17721R1

BOLT, 1/2-13 x 4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

31

473862R1

SPROCKET ASSY.

SPROCKET, main drill shaft

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

102895

3/8-16 x 7/8 sq-hd cup-pt set

1шт.

32

589937R1

WASHER

wear

5шт.

33

481810R1

WASHER

keyed

2шт.

34

484060R1

BUSHING

steel back bronzed

3шт.
