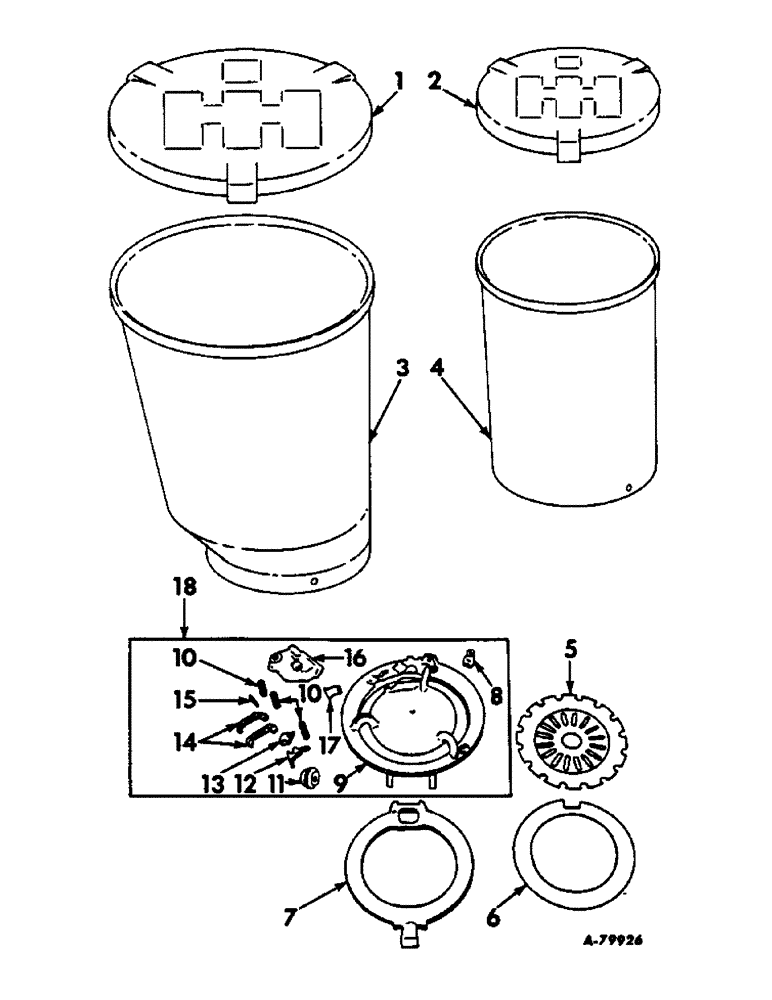

Запчасти Case IH 455 (G-31) - HOPPERS AND COVERS SEED, STRAIGHT & OFFSET SIDES, ONE PER ROW
№
Артикул
Название
Примечание
Количество
1
474852R1
COVER
polyethylene offset side hopper
1шт.
2
474850R2
COVER ASSY
COVER, polyethylene straight side hopper
1шт.
3
474851R11
HOPPER
ASSY, fiberglass offset side, 70 lbs capacity
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
3шт.
611344R1
WASHER
11/32 x 7/8 x 16 ga C-Z
3шт.
138538
LOCK WASHER
WASHER, 5/16 int-tooth lock C-Z
3шт.
4
474849R11
HOPPER ASSY, fiberglass straight side, 30 lbs capacity
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
3шт.
611344R1
WASHER
11/32 x 7/8 x 16 ga C-Z
3шт.
138538
LOCK WASHER
WASHER, 5/16 int-tooth lock C-Z
3шт.
5
PLATE, seed, refer to seed plate section
1шт.
6
RING, filler, refer to seed plate section
1шт.
7
468507R2
PLATE
hopper bottom reversible
1шт.
8
625065R2
BUTTON
hopper bottom plate retainer
1шт.
104090
RIVET
1/4 x 1-5/8 button hd. ann.
1шт.
9
BOTTOM, hopper, order bottom assy, ORDER 464260R92
1шт.
10
2064A
SPRING
cut-off and knocker
3шт.
11
464259R1
ROLLER
KNOCKER, roller
1шт.
12
464258R11
ARM
ASSEMBLY, roller knocker
1шт.
12
625776R2
PAWL
knock-out, for small hole plate
1шт.
13
625066R1
KNOCKER
SEAT, adjustable knocker
1шт.
120583
SCREW,Sl Rnd Hd, 1/4" - 20 x 5/8"
1/4 x 5/8 cd or zn-pltd slt-rd-hd mach
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK 1/4"
1шт.
95-11028
WASHER,1/4"
9/32 x 5/8 x 16 ga
1шт.
14
625539R91
PAWL
S, cut-off, pair of inner and outer
1шт.
15
2000AA
PIN
cut-off pawls pivot
1шт.
16
625069R3
CAP
cut-off and knocker
1шт.
27480R1
CARRIAGE BOLT,5/16" x 2", Gr 5
BOLT, 5/16-18 x 2 sq-neck crg
1шт.
9635082
NUT,5/16" - 18, Gr 5
5/16-18 hex.
1шт.
17
13607AB
HINGE
GATE, hopper bottom hinge
1шт.
18
464260R92
BOTTOM
ASSY, hopper, for corn & bean planting
1шт.
Q3429
DOWEL
PIN, 5/16 x 3-1/2 headed
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
Выбрано товаров: 34
