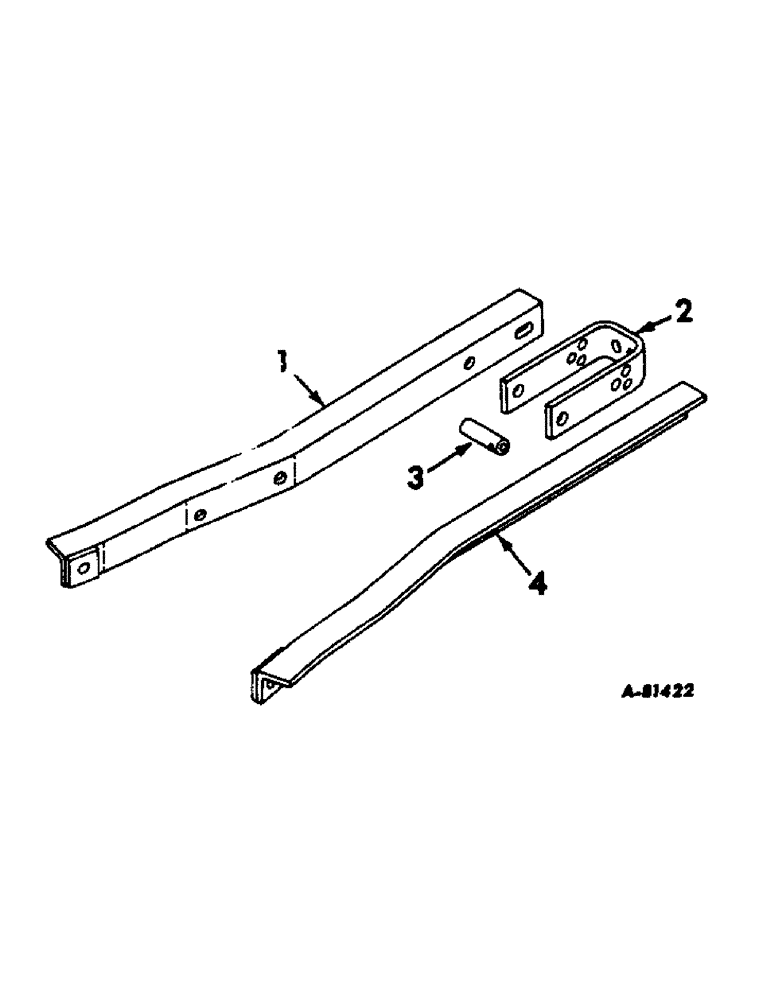

Запчасти Case IH 455 (G-30) - HITCH EXTENSION ATTACHMENT

1

480419R11

ANGLE, hitch extension left

1шт.

102637

NUT,1/2"-13, G5

3шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

2

480421R1

BRACKET, clevis

1шт.

186295

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

SCREW, 1/2-13 x 5-1/2 hex-hd cap

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

3

474975R1

POST, spacer

1шт.

4

480420R11

ANGLE, hitch extension right

1шт.

102637

NUT,1/2"-13, G5

3шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.
