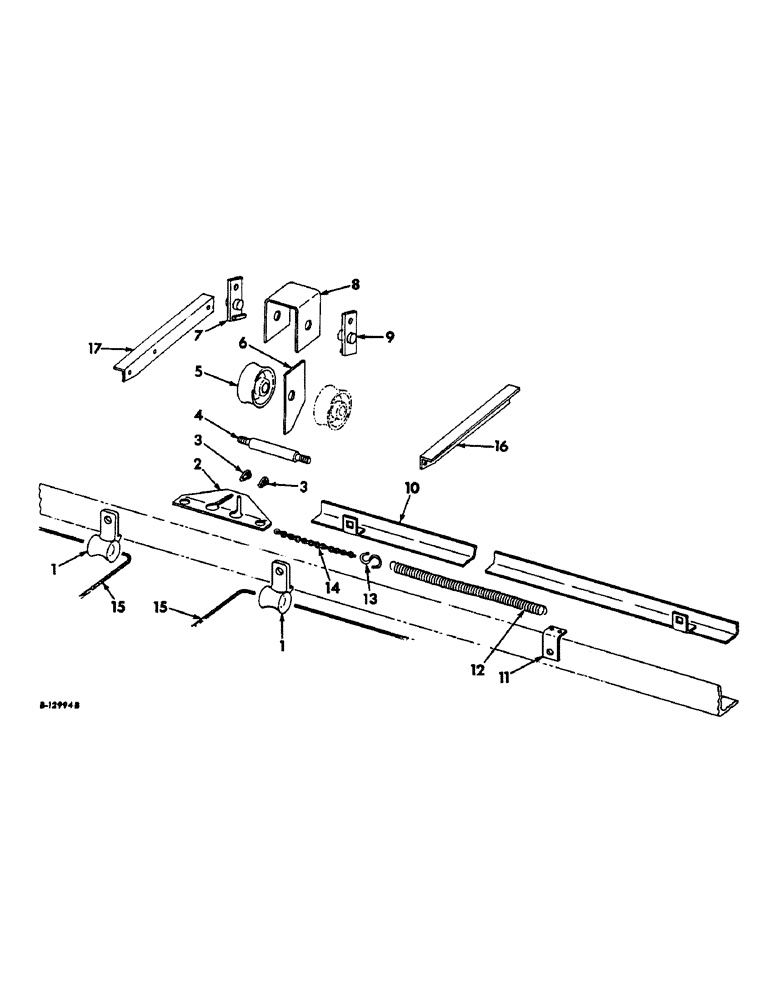

Запчасти Case IH 455 (G-28) - DUAL MARKER ATTACHMENT

1

626031R1

GUIDE, marker chain

2шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, 7/16-14 x 1-1/4 short-sq-nk crg

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

477092R1

BRACKET, chain

1шт.

Q1176

HEADED PIN,5/8" x 2 3/16"

PIN, 5/8 x 2-3/16 std-hd

2шт.

3

50425H

LINK, chain repair

2шт.

4

477088R1

PIVOT, pulley

1шт.

5

625071R1

PULLEY

ROLLER, lift chain

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

6

477090R1

STRIP, pulley clevis

1шт.

7

477084R91

MOUNTING ASSY, pulley clevis RH

1шт.

8

477089R1

CLEVIS, pulley

1шт.

9

477083R91

MOUNTING ASSY, pulley clevis LH

1шт.

10

477102R91

GUIDE ASSY, chain

2шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2-13 x 1-1/2 sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

477094R1

ANGLE, spring anchor

2шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 short sq-nk crg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

477093R1

SPRING, marker

2шт.

13

512749R1

HOOK

S-HOOK, rope

2шт.

14

477091R1

CHAIN (AG)

CHAIN, lift

1шт.

15

ROPE, marker, 30 ft 3/16 in. dia., purchase locally

1шт.

16

480608R1

ANGLE, marker arm LH brace

1шт.

17

480609R1

ANGLE, marker arm RH brace

1шт.

17470R1

BOLT

5/16 x 1-1/2 hex-hd mach

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

6шт.
