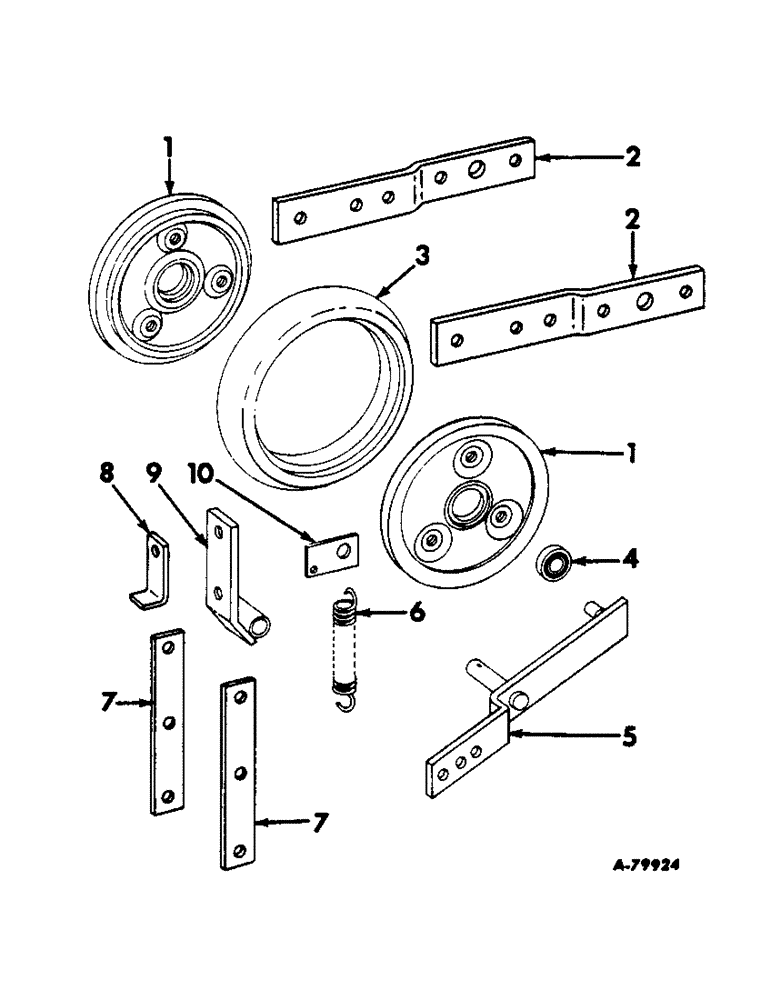

Запчасти Case IH 455 (G-26) - SEED FIRMING WHEEL ATTACHMENT, ONE PER ROW

1

527151R1

PLATE

WHEEL, seed firming disc

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 1 hex-hd mach

3шт.

109084

NUT,1/4"-20, G5

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

3шт.

2

473576R1

EXTENSION, pressure wheel

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

527227R1

TYRE/TIRE

TIRE, 7 x 1 semi-pneumatic

1шт.

4

467880R91

BALL BEARING,0.503" ID x 1.375" OD x 0.4331"

ASSY, seed firming ball

1шт.

5

471214R91

BRACKET

PIVOT ASSY, wheel

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 hex-hd mach

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

13069R1

PIN, 1/4 x 1 self-opening cot.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK 1/4"

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

1шт.

147697

WASHER

5/16 x 7/8 x 16 ga

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

6

207199R1

SPRING

extension, replaces 622016R1

1шт.

7

473575R1

STRIP

firming wheel mounting, drill

2шт.

16038R1

WASHER

17/32 x 1 x 11 ga

2шт.

8

477834R1

STOP, firming wheel, drill

1шт.

9

471218R11

SUPPORT

ASSY, wheel pivot, hill drop

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 sq-nk crg

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

471217R1

CLIP

spring

1шт.

17721R1

BOLT, 1/2-13 x 4 hex-hd mach, hill drop

1шт.

102637

NUT,1/2"-13, G5

Hill drop 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Hill drop 1/2"

1шт.
