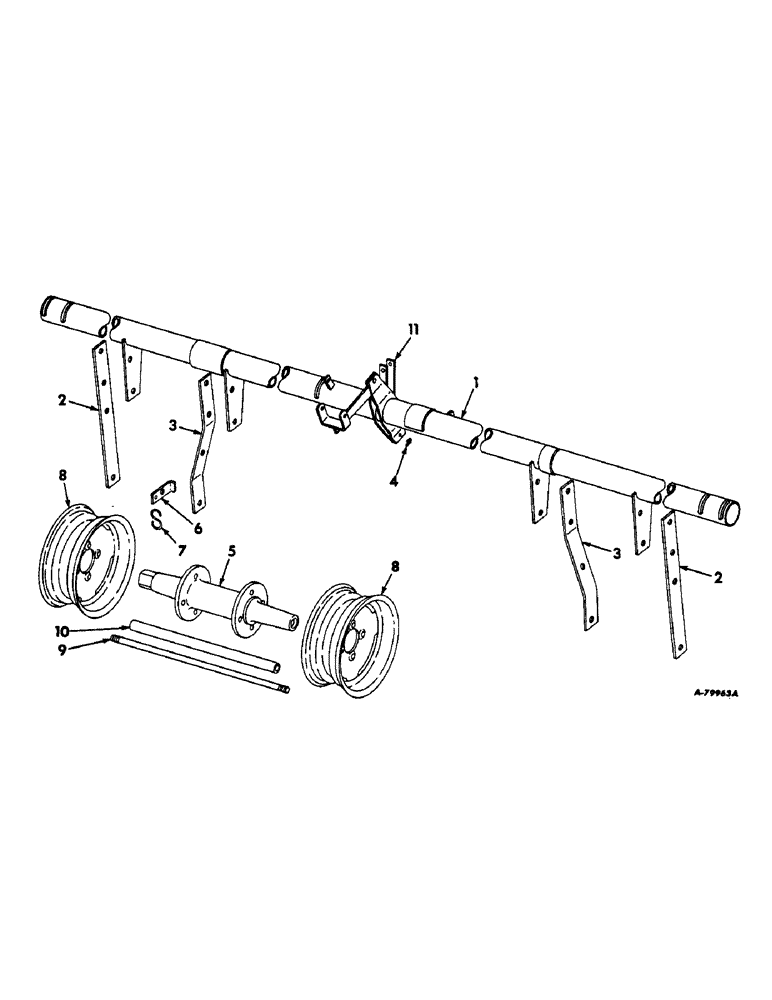

Запчасти Case IH 455 (G-24) - ADJUSTABLE AND DUAL WHEEL FRAME

1

473566R92

FRAME ASSY, adjustable wheel, Serial Range: 1963-1965

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

1

474668R93

FRAME ASSY, dual wheel, 38 to 40 in. row spacing

1шт.

2

473564R1

SUPPORT, wheel arm straight, Serial Range: 1963-1965

2шт.

17450R1

BOLT, 5/8-11 x 1-1/4 hex-hd mach

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

473565R1

SUPPORT, wheel arm offset, Serial Range: 1963-1965

2шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cylinder bracket arm

1шт.

5

473560R1

HUB, dual wheel

2шт.

6

473562R1

ANCHOR, spring

2шт.

7

474374R1

HOOK

S-HOOK

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

463036R1

WHEEL (STEERING)

WHEEL ASSY, planter, 14 x 5J

2шт.

8

455169R92

WHEEL

ASSY, planter, 15 x 4-1/2KB

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel hub

8шт.

9

473563R1

AXLE, wheel

2шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

473561R1

TUBE, dual wheel

2шт.

11

472275R1

BEARING

CYLINDER BRACKET

1шт.
