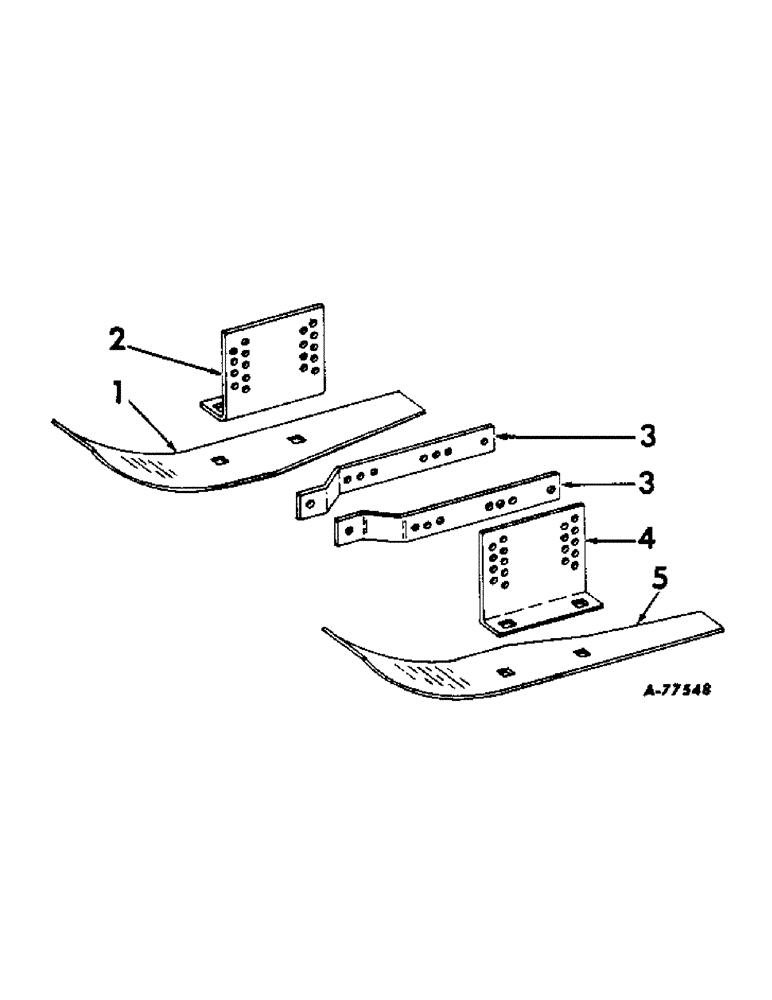

Запчасти Case IH 455 (G-17[A]) - NARROW GAUGE SHOE, 7-1/2 INCH WIDE

102894

SET SCREW

3/8-16 x 3/4 sq-hd cup-pt set

2шт.

1

474660R1

SHOE

RH

1шт.

15552R1

BOLT, 7/16-14 x 1 no. 3 hd 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

2

474656R1

SUPPORT

RH

1шт.

3

474657R1

STRAP, attaching

2шт.

17649R1

BOLT, 7/16-14 x 3-1/4 hex-hd mach

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

1шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 hex-hd mach

1шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

102637

NUT,1/2"-13, G5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

474655R1

SUPPORT

LH

1шт.

5

474659R1

SHOE

LH

1шт.

15552R1

BOLT, 7/16-14 x 1 no. 3 hd 7/16"-14 x 1", G2, Full Thd

2шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.
