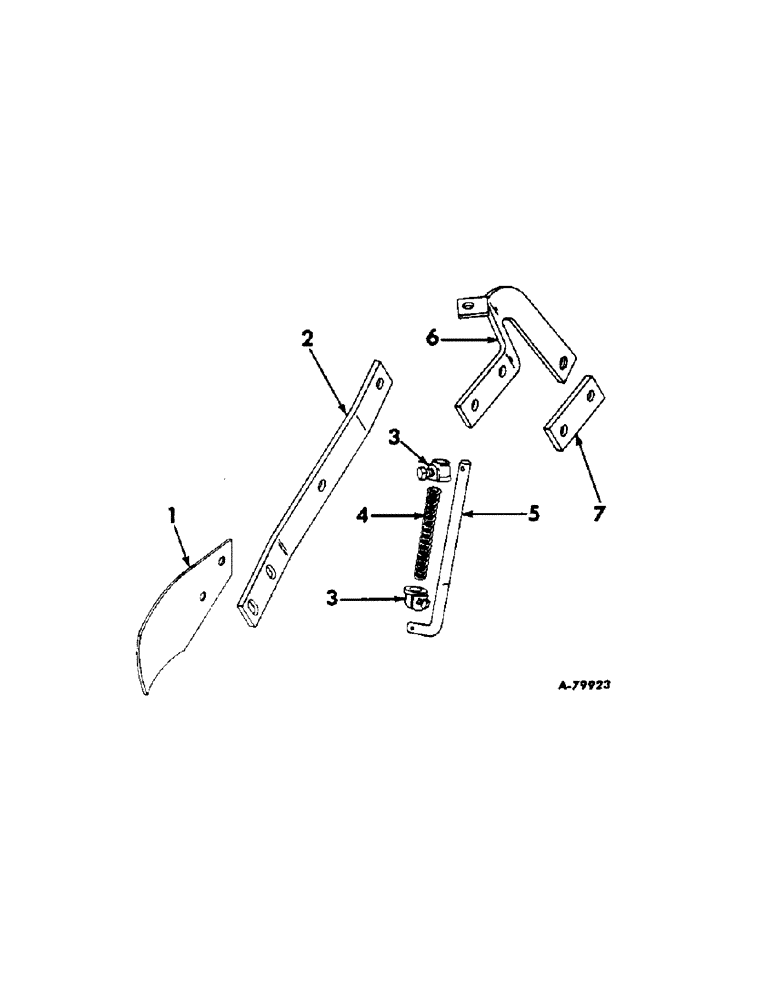

Запчасти Case IH 455 (G-13) - BLADE COVERING ATTACHMENT, WIDE, 1965 AND SINCE, ONE PER ROW

1

621426R1

SUPPORT

BLADE, covering LH

1шт.

1

621427R1

BLADE

covering RH

1шт.

2

472256R1

ARM, attaching

2шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q398

WASHER

11/32 x 7/8 x 16 ga

4шт.

3

PO2593X

COLLAR

ASSY, spring rod

4шт.

102892

SET SCREW

3/8-16 x 1/2 sq-hd cup-pt set

4шт.

4

NLS

NO LONGER SERVICED

spring rod

2шт.

5

464460R1

ROD

pressure spring

2шт.

13066R1

Pin, Split (Cotter), 1/8" x 1", self-opening 1/8" x 1"

4шт.

6

472251R91

BRACKET ASSY, LH

1шт.

6

472252R91

BRACKET ASSY, RH

1шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 hex-hd mach

4шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

102637

NUT,1/2"-13, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

76730H

WASHER

17/32 x 1-1/2 x 11 ga

2шт.

7

472386R1

SPACER, covering bracket

2шт.
