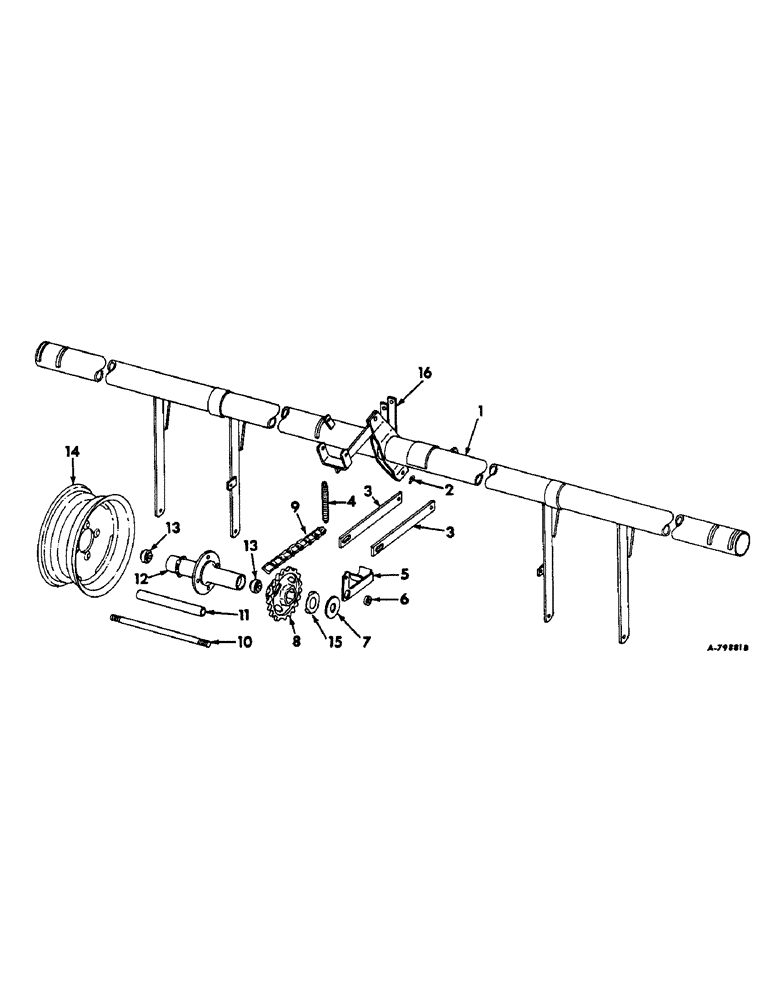

Запчасти Case IH 455 (G-07) - FRAME AND WHEEL

1

472264R93

TUBE ASSY, wheel frame, 34 to 40 inch row spacing

1шт.

2

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF str lub, cyl bracket arm

1шт.

3

472299R1

LINK

transport

2шт.

K156

HEADED PIN,5/8" x 2 1/8"

PIN, 5/8 x 2 std-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot.

2шт.

575810R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

4

2072A

VALVE SPRING

SPRING, chain tightener

2шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

2шт.

5

472293R91

LEVER

ARM ASSY, drive chain tightener LH

1шт.

5

472294R91

LEVER

ARM ASSY, drive chain tightener RH

1шт.

6

472297R1

WASHER

BUSHING, chain tightener

2шт.

7

472298R2

WASHER

retaining

2шт.

8

472279R1

SPROCKET ASSY.

SPROCKET, wheel drive, 16-T

2шт.

9

CHAIN, main wheel drive, use 55 links of 50H steel chain from a 10 ft. roll marked CS-50H

1шт.

10

472280R2

ROD

AXLE, wheel

2шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

464435R1

SPACER

wheel axle

2шт.

12

472278R2

HUB CAP

HUB, wheel

2шт.

13

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

wheel axle ball

4шт.

14

463036R1

WHEEL (STEERING)

WHEEL ASSY, planter drive, 14 x 5J, tire size 7.50 x 14 or 8.00 x 14

2шт.

14

455169R92

WHEEL

ASSY, planter drive, 15 x 4-1/2

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

8шт.

15

479136R1

WASHER

sprocket wear

2шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

16

472275R1

BEARING

cylinder bracket

1шт.
