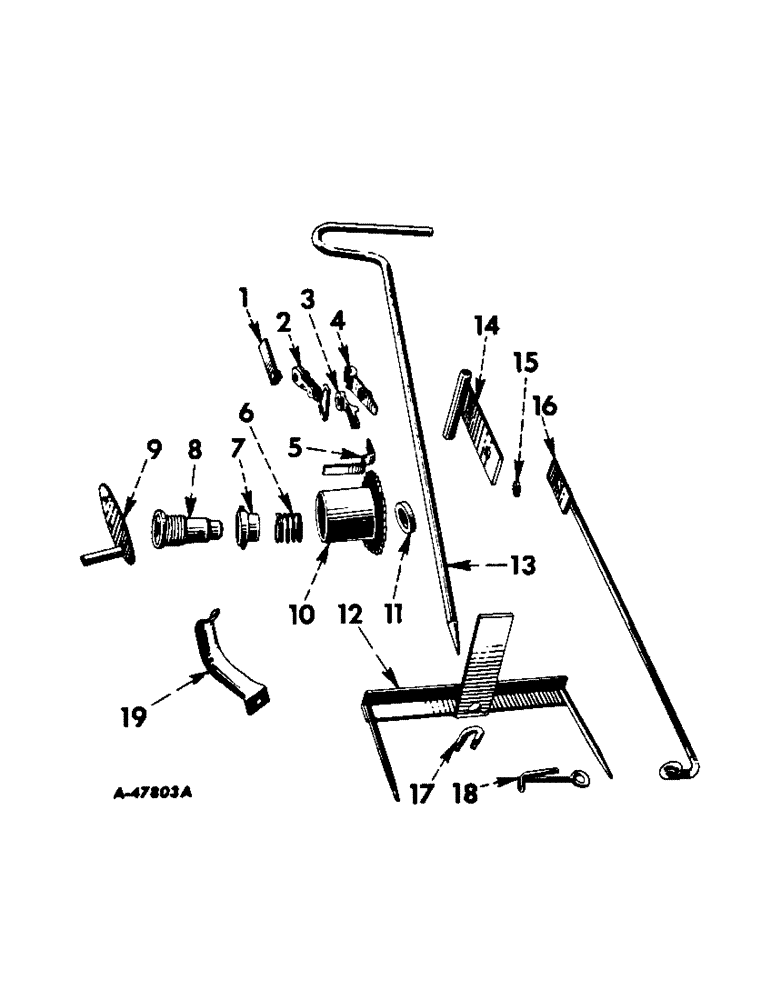

Запчасти Case IH 450A (E-37[A]) - CHECKROW PLANTING ATTACHMENT, PAY-OUT STAKE, NOS. 450 AND 650 PLANTERS

1

23774A

NUT W/HANDLE, clamping

1шт.

2

3536A

CLAMP W/LUG, pawl half

1шт.

3

3499A

PAWL, right

1шт.

3

3500A

PAWL, left

1шт.

4

3465A

CLAMP W/O LUG, pawl half

1шт.

BOLT, 7/16 x 2-1/4 crg

1шт.

BOLT W/NUT, 3/8 x 2 mach

1шт.

5

33283A

GUIDE, rope

1шт.

BOLT W/NUT, 5/16 x 3/4 mach

2шт.

6

33287A

SPRING, clutch

1шт.

7

3498A

COLLAR, clutch

1шт.

8

23838A

SPOOL W/SPRING, friction

1шт.

BOLT, 7/16 x 4-1/2 sq-hd mach

1шт.

NUT, 7/16

1шт.

WASHER, 15/32 x 1-7/16 x 14 ga

1шт.

9

23773AA

COVER W/HANDLE, ratchet drum

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-rd-hd

4шт.

10

3462AA

DRUM, ratchet

1шт.

11

33192A

WASHER, felt

1шт.

12

23837A

FOOT PIECE, anchor stake

1шт.

13

33279A

STAKE, anchor

1шт.

14

23836A

BRACKET W/HEAD, ratchet drum

1шт.

15

33285A

BUSHING

1шт.

16

23835A

ROD W/BRACKET, trip

1шт.

17

33175A

U-BOLT

1шт.

WASHER, 3/8 lock

2шт.

NUT, 3/8

2шт.

18

33184A

HOOK, wire

1шт.

19

625370R1

HOOK, check wire, on check head

1шт.

BOLT, 5/16 x 1-1/4 crg

1шт.

ROPE, 1/4 x 12 ft. pay-out, purchase locally

1шт.
