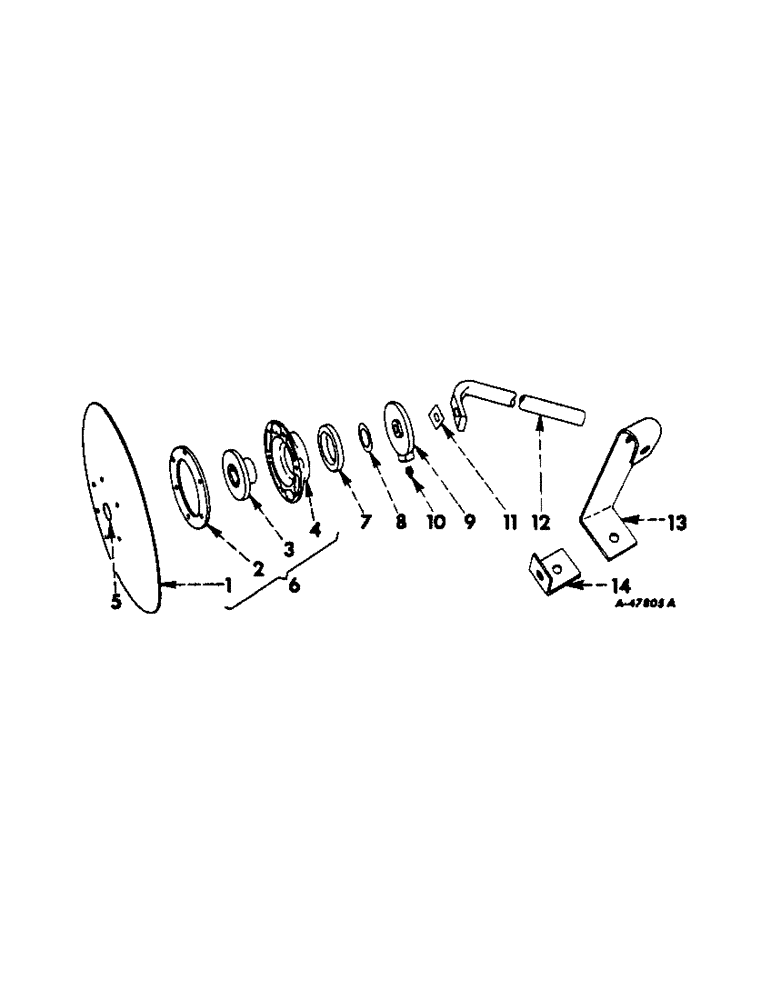

Запчасти Case IH 449A (E-55) - DISK MARKER ATTACHMENT

1

624457R11

DISK W/PLUG

1шт.

2

N62375

GASKET

1шт.

3

NA2346

BEARING

1шт.

620156R1

BOLT

1/2 unf x 2 sq-hd mach

1шт.

472154R1

LOCK NUT,1/2"-20, GB

NUT, 1/2 unf

1шт.

4

N2522

HUB

1шт.

RIVET, 1/2 x 5/8 74 deg csk-hd

6шт.

5

N42900

PLUG

1шт.

6

624722R91

DISK W/HUB AND BEARING

1шт.

7

NA42985

WASHER, felt

1шт.

8

615991R1

WASHER

1-3/32 x 1-1/2 x 26 ga

1шт.

9

N2605

HANGER

1шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

11

N32572

CLIP

lock, nos. 449, 450, 649 and 650 planters

2шт.

12

624466R2

EXTENSION, marker bar, nos. 449, 450, 649 and 650 planters

1шт.

13

626197R1

SUPPORT, pivot, nos. 249 and 250 planters

1шт.

BOLT W/NUT, 1/2 x 2 mach

1шт.

WASHER, 1/2 lock

1шт.

14

626196R1

PIVOT, disk, nos. 249 and 250 planters

1шт.

BOLT W/NUT, 1/2 x 1 mach

1шт.

WASHER, 1/2 lock

1шт.
