(E-49[A]) - FIELD CONVERSION PACKAGE TO PROVIDE ROLLERS FOR MARKER LIFT CHAINS OF 449A AND 450A PLANTERS WITH BOLTED END RAILS

Запчасти Case IH 449A (E-49[A]) - FIELD CONVERSION PACKAGE TO PROVIDE ROLLERS FOR MARKER LIFT CHAINS OF 449A AND 450A PLANTERS WITH BOLTED END RAILS

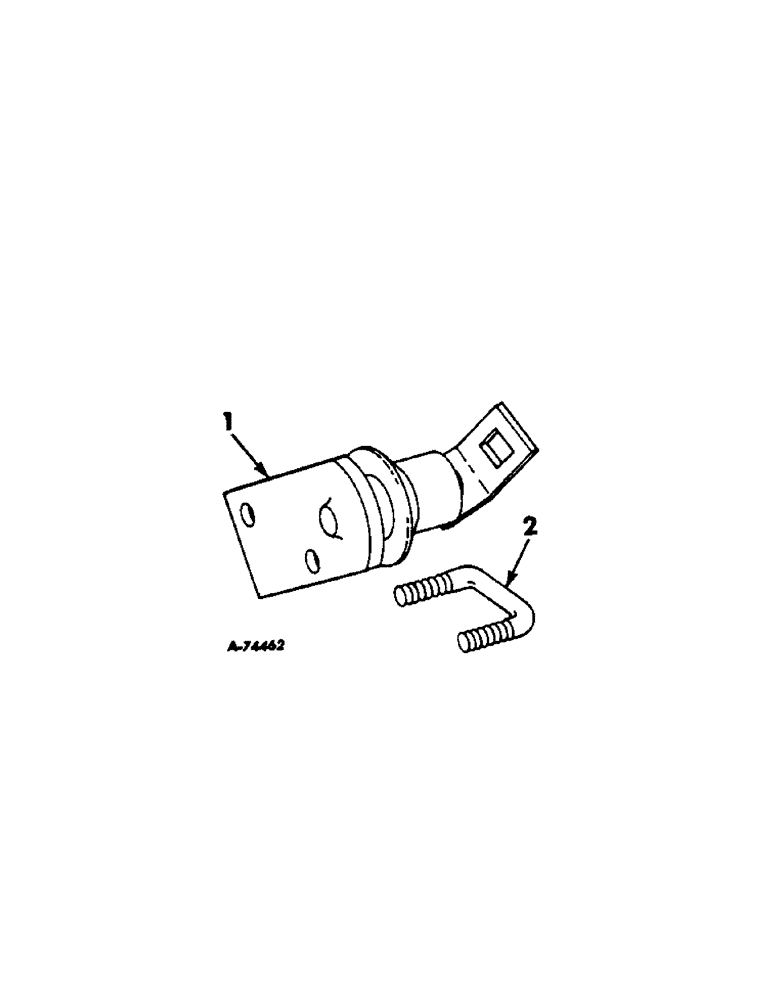

Схема запчастей Case IH 449A - (E-49[A]) - FIELD CONVERSION PACKAGE TO PROVIDE ROLLERS FOR MARKER LIFT CHAINS OF 449A AND 450A PLANTERS WITH BOLTED END RAILS
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

471556R91

BRACKET, left marker roller

1шт.

1

471557R91

BRACKET, right marker roller

1шт.

2

471562R1

U-BOLT, marker roller bracket

1шт.

NUT, 3/8

2шт.

WASHER, 3/8 lock

2шт.

Выбрано товаров: 5
