Запчасти Case IH 449A (E-44) - CARRYING WHEELS, FOR FOUR ROW

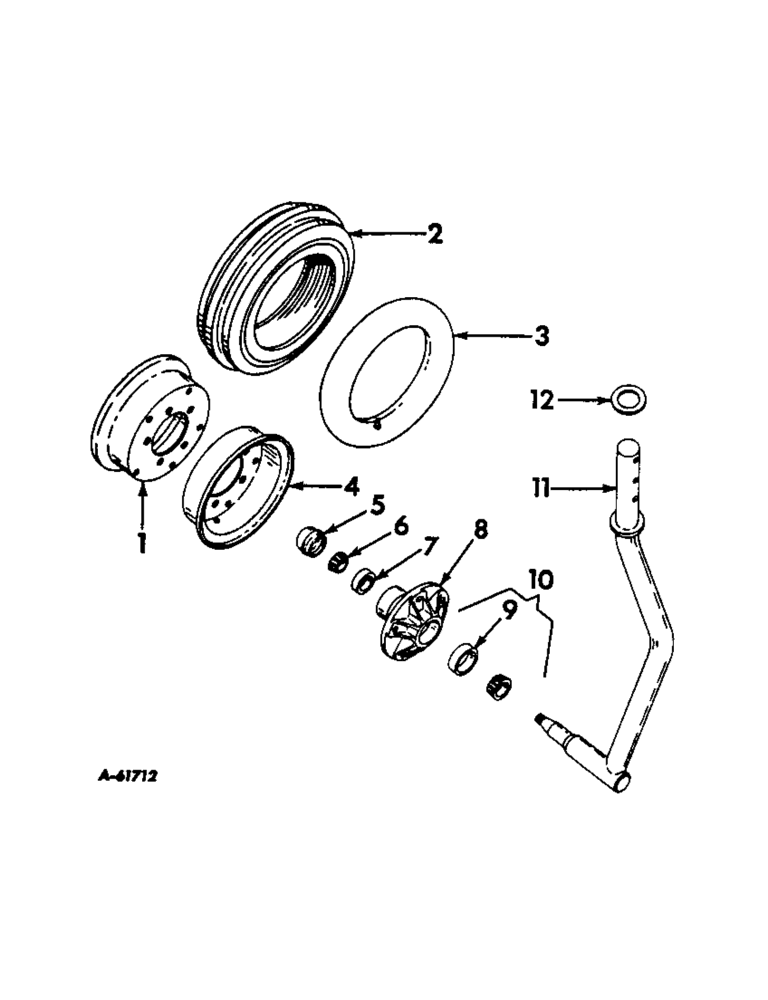

Схема запчастей Case IH 449A - (E-44) - CARRYING WHEELS, FOR FOUR ROW
11
12
7
5
1
4
8
6
2
3
10
9

Артикул

Название

Примечание

Количество

1

621745R1

WHEEL, disk half, w/valve hole

1шт.

2

TIRE, ribbed implement pnuematic, 6.00 x 9

1шт.

3

TUBE, pneumatic, 6.00 x 9

1шт.

4

621746R1

WHEEL, disk half, w/o valve hole

1шт.

.

BOLT, 3/8 x 3/4 cd-pltd mach

5шт.

.

NUT, 3/8 cd-pltd lock

5шт.

5

651194R1

CAP

wheel

1шт.

6

651814R1

BEARING CUP

CUP, outer bearing

1шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE ASSEMBLY, outer bearing

1шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

8

653651R91

HUB W/BOLT AND NUTS, wheel

1шт.

.

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT, 1/2 unf x 1-1/2 special

5шт.

.

453770R1

WHEEL NUT

1/2 unf special

5шт.

9

651817R1

BEARING CUP

CUP, inner bearing, order 602957R91

1шт.

9

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

10

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

CONE W/SEAL AND CUP, inner

1шт.

11

462969R11

AXLE ASSEMBLY, carrying wheel

1шт.

.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, 5/8 slt

1шт.

.

PIN, 5/32 x 1-1/4 cotter

1шт.

.

PIN, 5/16 x 3 self-opening cotter

1шт.

.

WASHER, 21/32 x 1-5/16 x .095 ga

1шт.

12

462997R1

WASHER

wheel axle wear

1шт.

Выбрано товаров: 22
