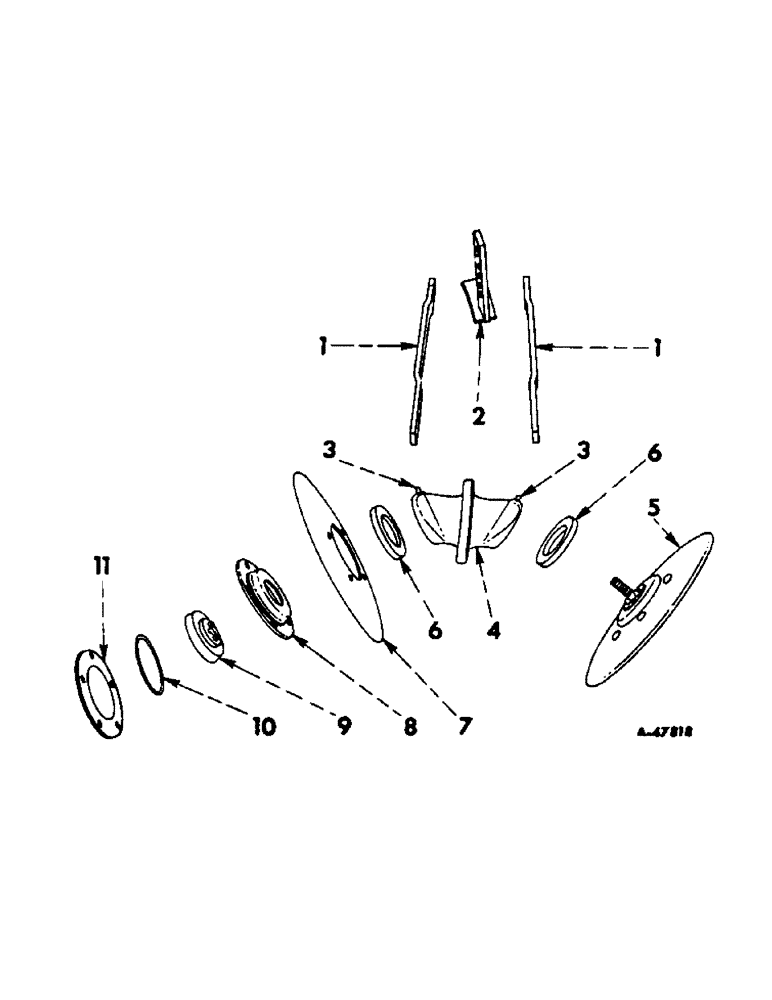

Запчасти Case IH 449A (E-41) - DISK FURROWING ATTACHMENT, 9 AND 11 IN.

1

625498R1

CLAMP

1шт.

BOLT W/NUT, 3/8 x 1-1/2 mach

1шт.

WASHER, 3/8 lock

1шт.

2

625499R91

BRACKET, adjusting

1шт.

BOLT W/NUT, 7/16 x 4-3/4 sq-hd

1шт.

WASHER, 7/16 lock

1шт.

3

110161

FITTING, 3/16 drive type straight lub

1шт.

4

625316R11

BRACKET W/LUBRICATION FITTING, disk

1шт.

BOLT W/NUT, 3/8 x 1-3/4 mach

2шт.

WASHER, 3/8 lock

1шт.

5

23901A

DISK W/HOUSING AND BEARING BLOCK , 9 in.

1шт.

5

23526A

DISK W/HOUSING AND BEARING BLOCK, 11 in., Serial Range: 1956-1958

1шт.

5

626470R91

DISK W/HOUSING AND BEARING BLOCK, 11 in., 1958 and since

1шт.

6

M10

FELT

WASHER, felt

1шт.

7

33248A

DISK, 9 in.

1шт.

7

13566A

DISK, 11 in.

1шт.

8

W4227

HOUSING

bearing

1шт.

9

N748

BLOCK, bearing

1шт.

BOLT W/NUT, 7/16 x 1-1/2 sq-hd

1шт.

WASHER, 7/16 lock

1шт.

10

M2

WASHER

GASKET

1шт.

11

W7213

PLATE, disk bearing cover

1шт.

RIVET, 1/4 x 5/8 b-hd

5шт.
