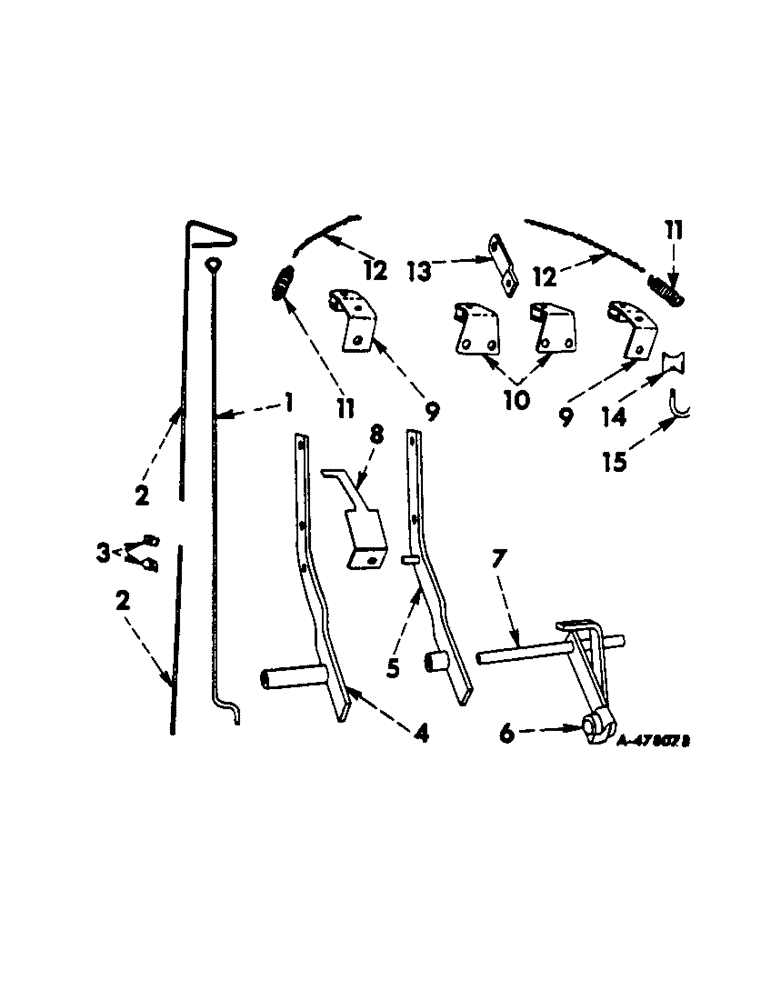

Запчасти Case IH 449A (E-39) - GRASS WATER, WAY ATTACHMENT

1

625206R1

ROD, rear power lift trip

1шт.

2

625205R1

ROD, front power lift trip

1шт.

3

PO2193

CLAMP

power lift trip rod

2шт.

BOLT W/NUT, 1/4 x 3/4 crg

1шт.

4

625359R91

LEVER, power lift trip, 1957

1шт.

4

626132R91

LEVER, power lift trip, 1958 and since

1шт.

5

625358R91

LEVER, power lift and marker trip, 1957

1шт.

5

626134R91

LEVER, power lift and marker trip, 1958 and since

1шт.

PIN, 3/16 x 1-1/4 cotter

1шт.

WASHER, 13/32 x 1 x 16 ga

1шт.

6

625047R1

STOP, power lift trip

1шт.

RIVET, 7/16 x 1-3/4 b-hd

1шт.

7

625357R91

LEVER, lower power lift trip

1шт.

PIN, 3/16 x 1-1/4 cotter

2шт.

PIN, 5/16 x 3/4 cotter

1шт.

WASHER, 21/32 x 1 x 16 ga

1шт.

8

625363R2

STOP, trip arm

1шт.

9

625814R93

PULLEY AND CASE, outer, no. 450 planter

1шт.

Q814

AXLE PIN,1/2" x 2 11/16"

PIN, 1/2 x 2-11/16 dld-std-hd

1шт.

10

625815R91

PULLLEY AND CASE, inner

1шт.

11

M554

SPRING, check head trip

1шт.

12

625813R1

CHAIN, no. 4 Elwel machine chain, 170 in. long, no. 450 planter, 1957

1шт.

12

626128R1

CHAIN, no. 4 Elwel machine chain, 164 in. long, no. 450 planter, 1958 and since

1шт.

12

626294R1

CHAIN, no. 4 Elwel machine chain, 256 in. long, no. 650 planter

1шт.

13

625809R11

ARM, trip

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

1шт.

WASHER, 3/8 lock

1шт.

14

3125A

SLIDE, chain, no. 650 planter

1шт.

15

620101R11

BOLT W/NUT, hook, no. 650 planter

1шт.

NUT, 3/8

1шт.

WASHER, 3/8 lock

1шт.

625355R1

BUSHING, power lift and marker trip lever

1шт.
