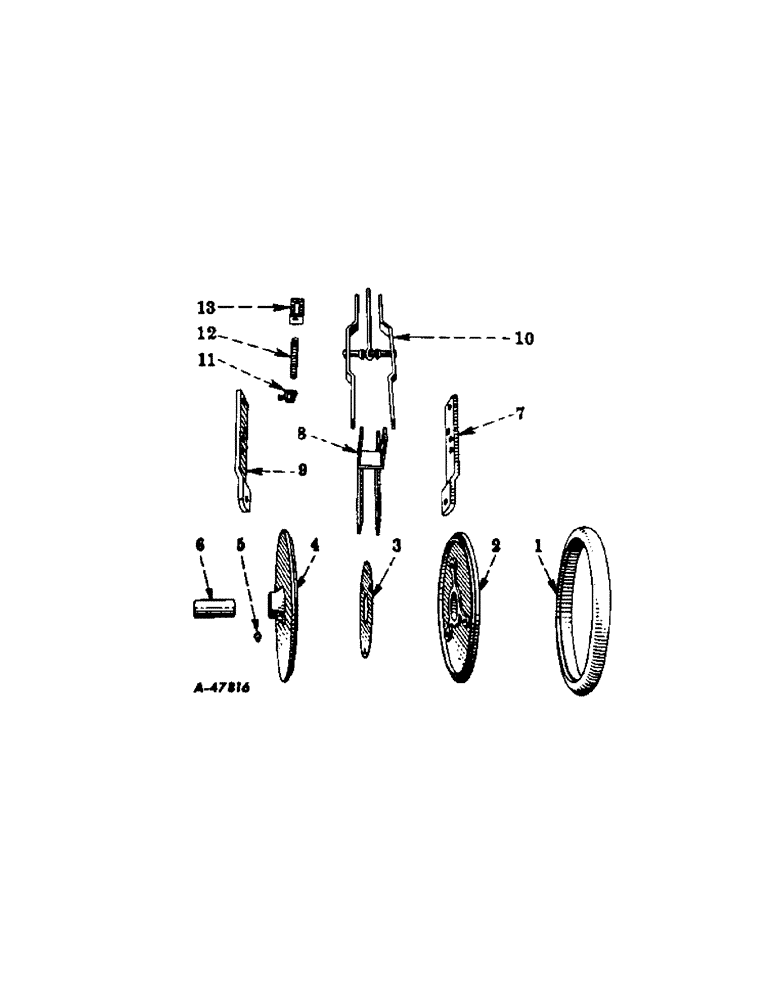

Запчасти Case IH 449A (E-32[A]) - SEED FIRMING WHEEL ATTACHMENT, 1957 TO 1959

1

TIRE, press wheel, 1 x 10 in. dia, available only in pairs, order 623106R91

1шт.

2

WHEEL, seed firming, less lub fitting, for service order 622352R11

1шт.

3

622358R1

GASKET

1шт.

4

622352R11

WHEEL W/LUBRICATION FITTING SEED FIRMING, half

1шт.

BOLT W/NUT, 1/4 x 3/4 mach

3шт.

5

109358

FITTING, 5/8 drive type straight lub

1шт.

6

622357R1

JOURNAL

1шт.

BOLT, 3/8 x 3-1/2 mach

1шт.

551193R1

NUT, 3/8 self-locking

1шт.

7

625770R1

EXTENSION, right press wheel drawbar

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.

8

625822R91

SHIELD

1шт.

BOLT W/NUT, 3/8 x 2-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.

9

625769R1

EXTENSION, left drawbar press wheel

1шт.

BOLT W/NUT, 3/8 x 1-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.

10

625821R91

DRAWBAR

1шт.

PIN, 1/8 x 3/4 cotter

2шт.

U5357

HEADED PIN,3/8" x 2 5/8"

PIN, 3/8 x 2-5/8 dld-std-hd

1шт.

11

PO2593X

COLLAR

W/SET SCREW, set

1шт.

102892

SET SCREW

3/8 x 1/2 cup-pt sq-hd set

1шт.

12

M92

SPRING

pressure

1шт.

13

625818R1

BRACKET, spring tension

1шт.

PIN, 3/16 x 1 cotter

1шт.
