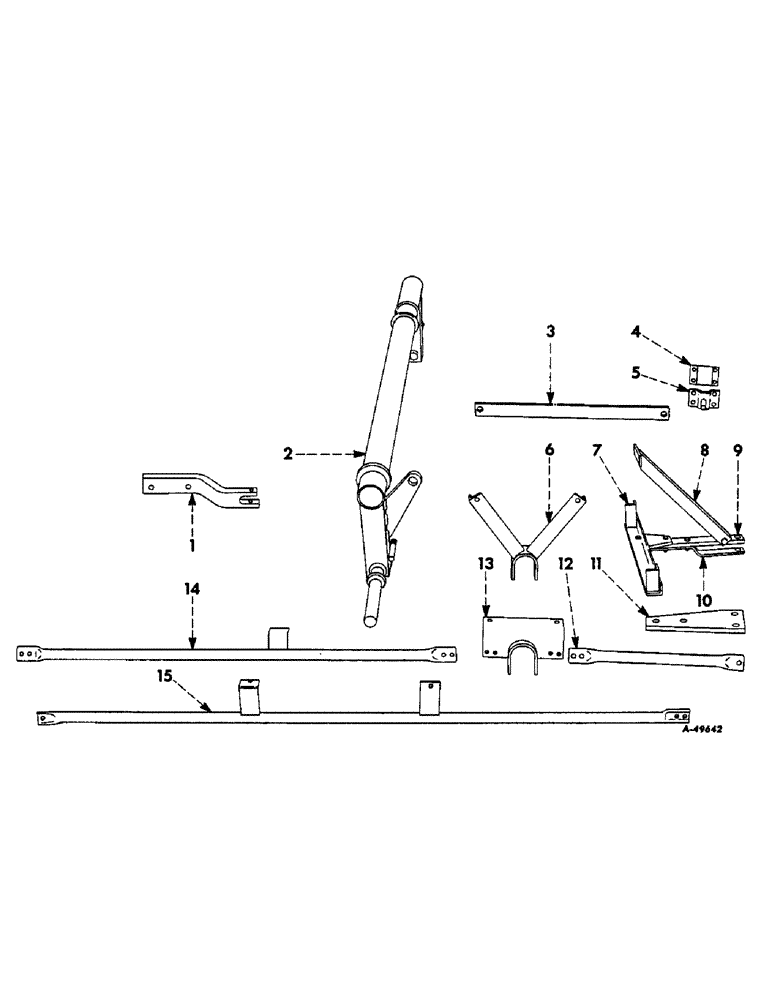

Запчасти Case IH 449A (E-30) - TRANSPORT ATTACHMENT, AXLE, HITCH AND TRUSS PIPE, FOR SIX-ROW

1

626234R11

SUPPORT, cylinder anchor

1шт.

BOLT W/NUT, 1/2 x 3-3/4 mach

1шт.

BOLT W/NUT, 1/2 x 4-1/4 mach

1шт.

512353R1

PIN, quick-attaching cotter

1шт.

Q986

PIN

5/16 x 2-5/8 dld-std-hd

1шт.

WASHER, 1/2 lock

2шт.

2

626320R91

AXLE, main

1шт.

460309R1

COTTER PIN

PIN, quick-attaching cotter

1шт.

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN W/ROLL PIN, quick-attaching cotter

2шт.

WASHER, 1-7/32 x 2-1/4 x 16 ga

2шт.

3

626303R1

LINK, wheel locking

1шт.

4

626357R1

PLATE, locking link clamp

1шт.

5

626356R11

CLAMP, locking link

1шт.

BOLT W/NUT, 3/8 x 3-1/4 crg

4шт.

460309R1

COTTER PIN

PIN, quick-attaching cotter

1шт.

WASHER, 3/8 lock

4шт.

6

626316R91

BRACKET, rear bearing

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

2шт.

460309R1

COTTER PIN

PIN, quick-attaching cotter

1шт.

5050S

PIN, 5/8 x 4-7/8 dld-std-hd

1шт.

WASHER, 1/2 lock

2шт.

7

626310R91

BAR, hitch

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

3шт.

BOLT W/NUT, 1/2 x 1-3/4 hex-hd mach

1шт.

WASHER, 1/2 lock

4шт.

8

626354R11

BRACE, hitch

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

2шт.

BOLT W/NUT, 5/8 x 4-3/4 mach

1шт.

WASHER, 1/2 lock

2шт.

WASHER, 5/8 lock

1шт.

9

626305R1

CLEVIS, straight hitch

1шт.

BOLT W/NUT, 1/2 x 2 mach

1шт.

BOLT W/NUT, 1/2 x 2-1/2 mach

2шт.

WASHER, 1/2 lock

3шт.

10

626306R1

CLEVIS, offset hitch

1шт.

11

66426D

PLATE, drawbar extension

1шт.

12

626377R1

PIPE, center truss

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

3шт.

WASHER, 1/2 lock

3шт.

13

626315R91

BRACKET, front bearing

1шт.

BOLT W/NUT, 1/2 x 3-1/2 mach

1шт.

460309R1

COTTER PIN

PIN, quick-attaching cotter

1шт.

Q986

PIN

5/8 x 4-7/8 dld-std-hd

1шт.

WASHER, 1/2 lock

1шт.

14

626375R11

PIPE, front rail right truss

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

4шт.

BOLT W/NUT, 1/2 x 3-1/4 mach

2шт.

WASHER, 1/2 lock

6шт.

15

626370R91

PIPE, front rail left truss

1шт.

BOLT W/NUT, 1/2 x 1-1/4 mach

1шт.

BOLT W/NUT, 1/2 x 1-1/2 mach

2шт.

BOLT W/NUT, 1/2 x 3-1/2 mach

1шт.

WASHER, 1/2 lock

4шт.
