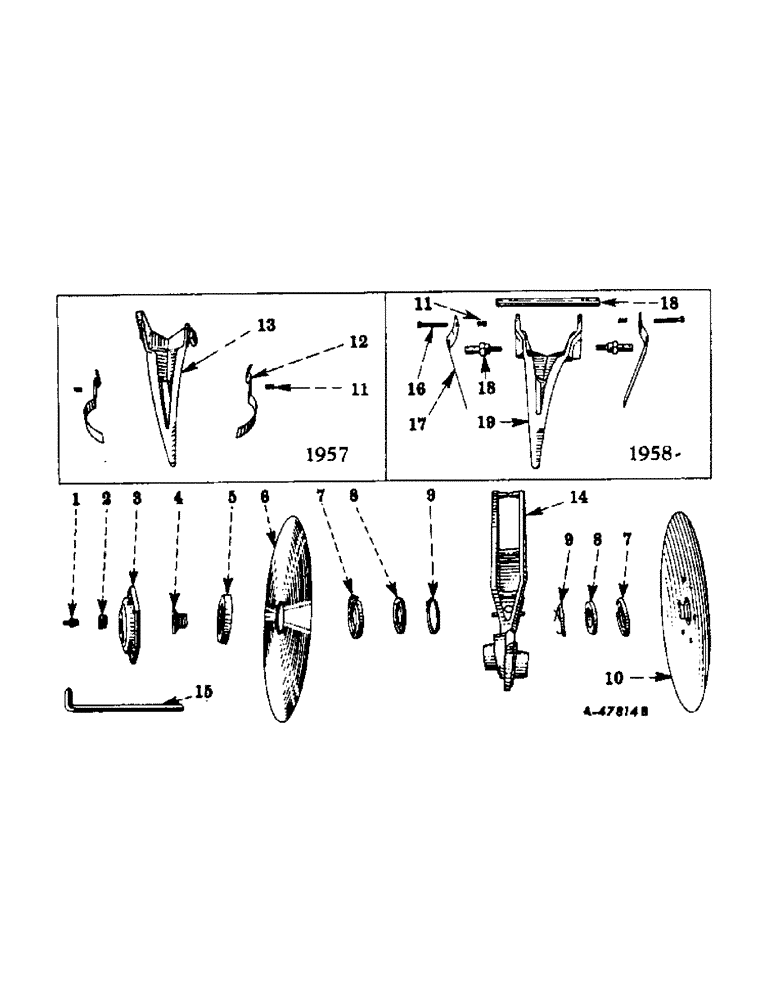

Запчасти Case IH 449A (E-25) - DOUBLE DISK FURROW OPENER

1

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

2

621021R1

CONNECTOR, ELEC

PLUG, disk

2шт.

3

NA2552

HUB

disk

2шт.

RIVET, 1/4 x 9/16 rd-hd

12шт.

4

621823R1

PLUG

left bearing block

1шт.

4

621824R1

PLUG

right bearing block

1шт.

5

NA2623

BLOCK

bearing

2шт.

6

621020R1

DISC

DISK

2шт.

7

N2616

WASHER

RING, dust

2шт.

8

M10

FELT

WASHER, felt dust seal

2шт.

9

620075R1

RETAINER

AND SPRING, left felt washer

1шт.

9

620076R1

RETAINER

AND SPRING, right felt washer

1шт.

10

621023R93

DISC

DISK W/HUB AND BEARING, left

1шт.

10

621024R93

DISK W/HUB AND BEARING, right

1шт.

11

6633

SPRING

2шт.

12

625321R1

SCRAPER, 1957

2шт.

BOLT W/NUT, 5/16 x 1-3/4 plow

2шт.

WASHER, 11/32 x 3/4 x 16 ga

2шт.

13

625320R1

SHIELD, disk, 1957

1шт.

BOLT W/NUT, 5/16 x 1 crg

1шт.

WASHER, 5/16 lock

1шт.

WASHER, 15/32 x 7/8 x 7 ga, between lower drawbar and sheild on shouler bolt

1шт.

14

625322R92

PLUG

RUNNER, double disk opener

1шт.

BOLT W/NUT, 7/16 x 4-1/2 sq-hd mach

1шт.

15

N62286

TOOL

WRENCH, bearing, 1 per machine

1шт.

16

626142R1

BOLT, 5/16 x 2-1/4 mach, 1958 and since

2шт.

NUT, 5/16

6шт.

WASHER, 11/32 x 3/4 x 16 ga

2шт.

17

626139R1

SCRAPER, 1958

2шт.

18

461901R1

PIVOT, lower drawbar, 1959 and since

1шт.

PIN, 1/8 x 1 cotter

2шт.

WASHER, 19/32 x 1 x 16 ga

2шт.

18

626141R2

STUD, shoulder, Serial Range: 1958-1959

2шт.

PIN, 1/8 x 1 cotter

4шт.

WASHER, 19/32 x 1 x 16 ga

2шт.

19

626140R1

SHIELD, disk, 1958 and since

1шт.

BOLT W/NUT, 5/16 x 1 crg

1шт.

WASHER, 5/16 lock

1шт.
