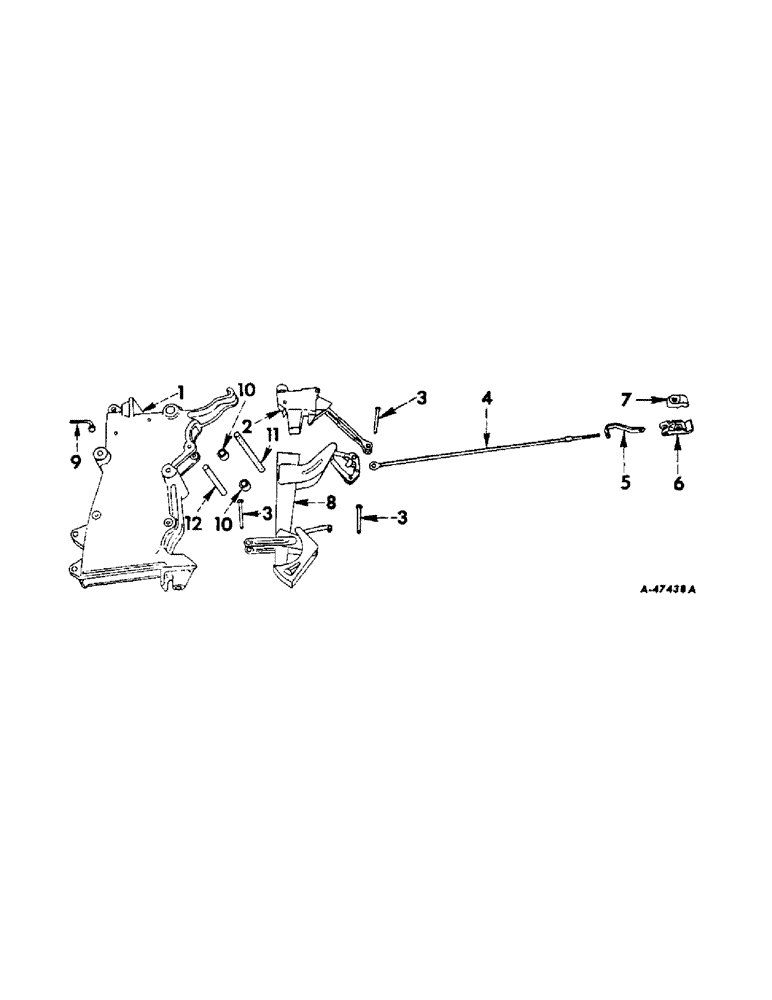

Запчасти Case IH 449A (E-19) - POWER HILL DROP BOOT

1

625250R3

BOOT, hill drop or check, for 625250R2 order ref. 1, 10, 11, 12

1шт.

2

625516R91

VALVE W/TUBE, upper

1шт.

109084

NUT,1/4"-20, G5

2шт.

114363

SCREW, 1/4 x 2 slt-fil-hd

2шт.

WASHER, 1/4 lock

2шт.

3

624613R1

PIN, headed, knurled

3шт.

PIN, 3/32 x 5/8 cotter

3шт.

4

625113R1

ROD, valve

1шт.

PIN, 5/16 x 1-3/16 dld-std-hd

1шт.

NUT, 5/16

2шт.

PIN, 3/32 x 5/8 cotter

1шт.

5

625558R1

LINK, valve rod

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

6

625037R1

ARM, valve rod

1шт.

BOLT W/NUT, 3/8 x 2-1/4 crg

1шт.

WASHER, 3/8 lock

1шт.

7

624367R1

CAP, valve rod arm

1шт.

8

625280R91

VALVE W/TUBE, lower

1шт.

9

624479R1

ROD,Hex, 5/16" - 18 x 2 1/4", Bent

BOLT, hopper hold down bent

1шт.

7500032

BUSHING

NUT, 5/16 C-Z wing

1шт.

WASHER, 11/32 x 1 x 16 ga

1шт.

10

461902R1

SPACER

2шт.

11

461901R1

PIVOT, lower drawbar, used for double disk opener

1шт.

PIN, 1/8 x 1 cotter

1шт.

WASHER, 19/32 x 1 x 16 ga

2шт.

12

461900R1

PIVOT, lower drawbar, used for straight runner

1шт.

PIN, 1/8 x 1 cotter

2шт.
