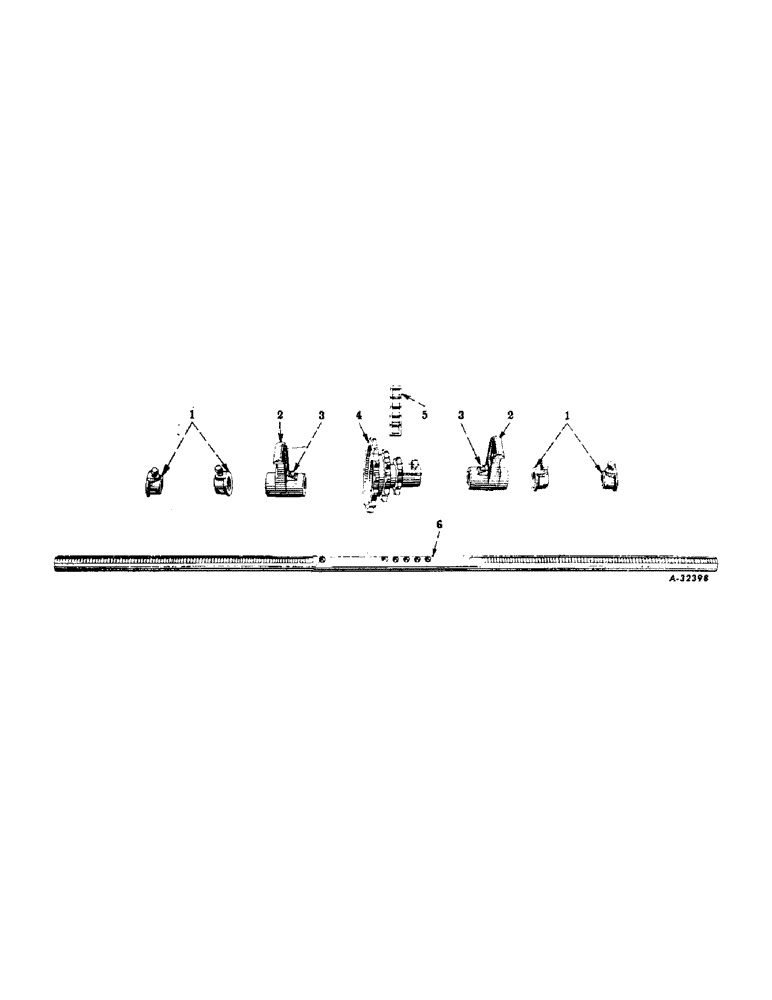

Запчасти Case IH 251 (X-07) - AXLE

1

622287R1

COLLAR W/SET SCREW, axle

4шт.

110450

SET SCREW,Sq Hd, 1/2"-13 x 1"

Cup Pt Sq Hd, 1/2"-13 x 1"

4шт.

2

622282R31

BEARING

W/LUBRICATION FITTING, axle

2шт.

17523R11

BOLT

W/NUT, 1/2-13NC x 2 hex-hd mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

109358

FITTING, 5/16 straight lub, drive fit

2шт.

4

622767R11

SPROCKET W/SET SCREW, axle triple

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2-13NC x 3/4 sq-hd cup-pt set

1шт.

5

2559A

CHAIN, drive, use 61 no. 32 steel links from 10 ft. roll marked CS-32

1шт.

6

622773R1

AXLE

1шт.

Q369

WASHER

15/32 ID x 1-5/8 OD x 16 ga plain

2шт.
