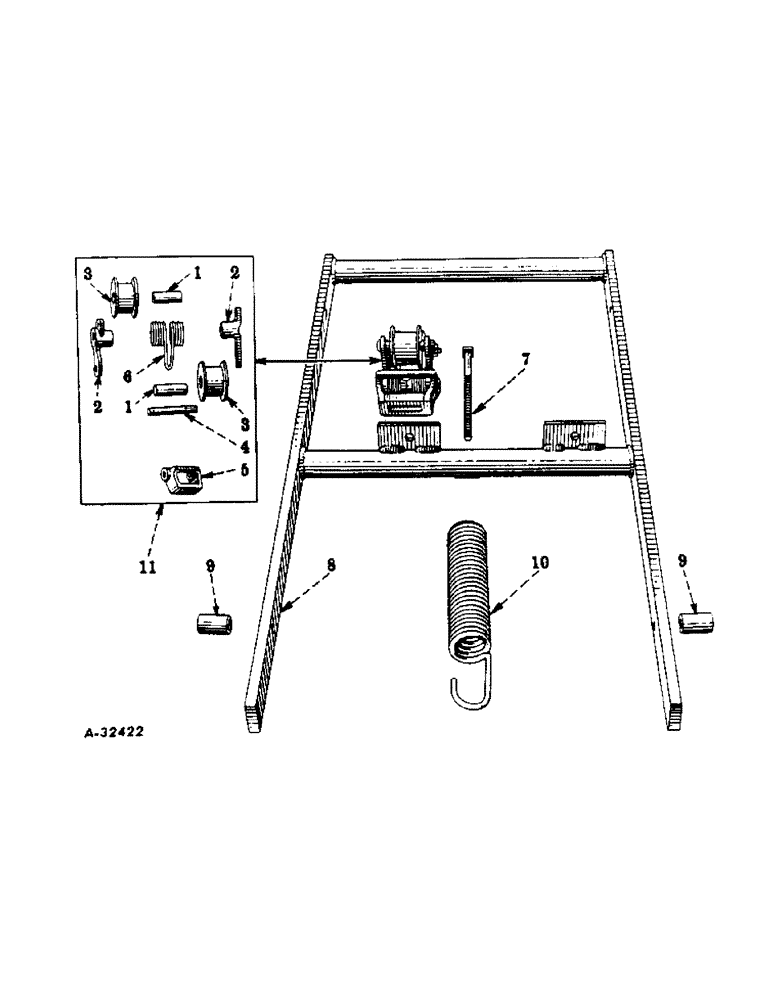

Запчасти Case IH 251 (X-06) - REAR FRAME

1

622392R1

BUSHING

2шт.

2

622281R1

ARM, chain tightener

2шт.

3

P168W

PULLEY

2шт.

15141R11

BOLT

W/NUT, 5/16-18NC x 3 crg

2шт.

4

P2016

PIN, 3/8 x 3-1/4 straight

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

5

3122A

BRACKET, chain tightener

1шт.

15023R11

BOLT

W/NUT, 3/8-16NC x 1-1/4 crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

PA2080

SPRING

1шт.

7

518813R1

BOLT, spring adjusting

1шт.

8

622828R92

FRAME, rear

1шт.

17550R11

BOLT

W/NUT, 1/2-13NC x 2-1/4 hex-hd mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12026R1

WASHER

17/32 ID x 1-1/4 OD x 16 ga plain

2шт.

9

624727R1

BUSHING

2шт.

10

622329R11

SPRING W/PLUG, wheel pressure

1шт.

11

623120R91

TIGHTENER ASSY, chain

1шт.
