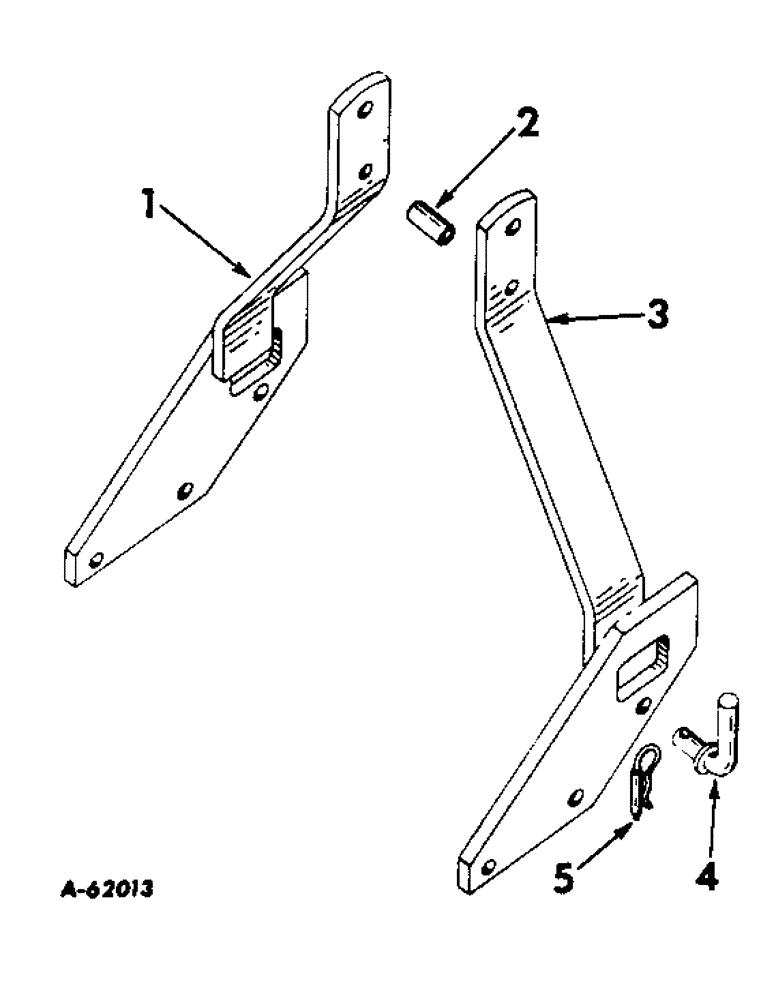

Запчасти Case IH 251 (X-34) - THREE-POINT HITCH

1

466517R91

FRAME ASSY, hitch LH, 1961 and since

1шт.

1

462879R91

FRAME ASSY, hitch LH, Serial Range: 1958-1961

1шт.

BOLT W/NUT, 1/2 x 1-3/4 hex-hd mach

1шт.

BOLT W/NUT, 5/8 x 2 hex-hd mach

1шт.

WASHER, 1/2 lock

1шт.

WASHER, 5/8 lock

1шт.

2

465971R1

SPACER

frame, 1961 and since

1шт.

BOLT W/NUT, 3/4 x 3-3/4 mach

1шт.

WASHER, 3/4 lock

1шт.

2

525927R2

SPACER, frame, Serial Range: 1958-1961

1шт.

BOLT W/NUT, 1/2 x 3-1/2 hex-hd mach

1шт.

WASHER, 1/2 lock

1шт.

3

466518R91

FRAME ASSY, hitch RH, 1961 and since

1шт.

3

462880R91

FRAME ASSY, hitch RH, Serial Range: 1958-1961

1шт.

BOLT W/NUT, 1/2 x 1-3/4 hex-hd mach

1шт.

BOLT W/NUT, 5/8 x 2 hex-hd mach

1шт.

WASHER, 1/2 lock

1шт.

WASHER, 5/8 lock

1шт.

4

462883R11

PIN W/WASHER, lock

1шт.

23471S

WASHER

25/32 x 1-1/2 x 7 ga flat

1шт.

5

520175R11

AXLE PIN

PIN ASSY, quick attachable cotter

1шт.
