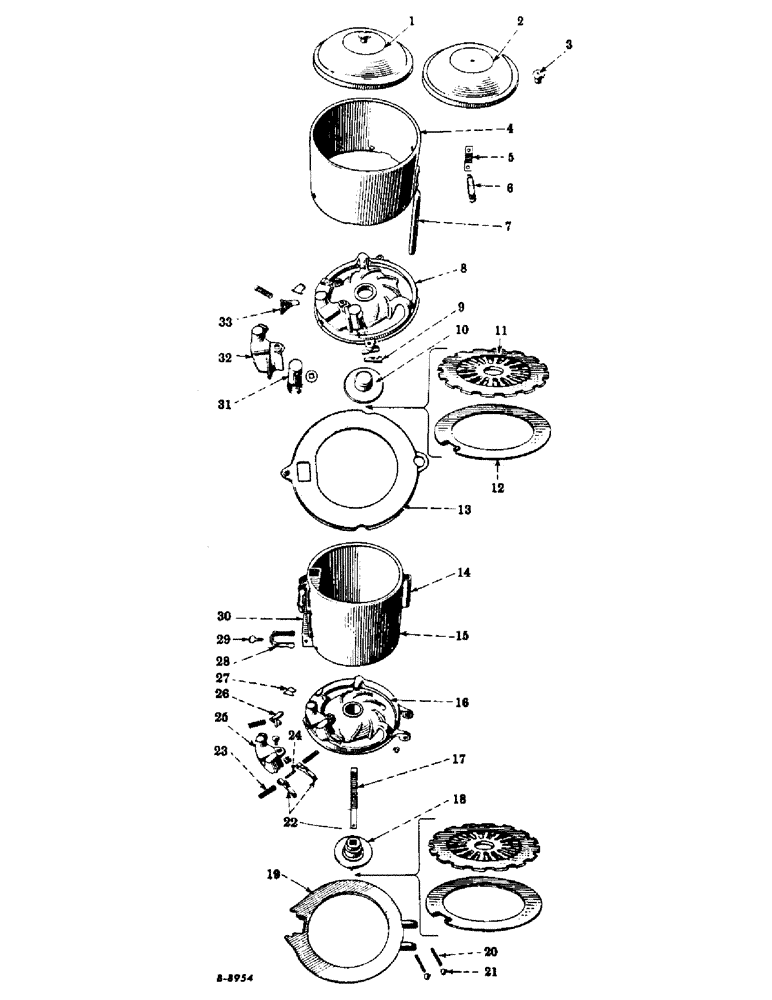

Запчасти Case IH 251 (X-32) - CORN AND PEA

1

622114R92

COVER W/BUTTON AND SPRING CONNECTION, hopper

1шт.

2

COVER, hopper, order cover, 622114R92

1шт.

3

1793A

BUTTON, hopper cover

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4 rd-hd

1шт.

4

23117AD

HOPPER W/SIDE POST, pea

1шт.

112417

RIVET, 1-1/4 lb size tinners

1шт.

114660

SCREW, 5/16-18NC x 3/8 slotted-rd-hd mach

3шт.

5

2505AA

CONNECTION, cover spring

1шт.

6

4A

SPRING

cover, 1/2 ID, 3-27/32 long, 31 coils

1шт.

7

2610AA

POST, side pea hopper

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 rd-hd

2шт.

8

23115AC

BOTTOM ASSY, pea hopper

1шт.

9

1920AA

LOCK, pea hopper bottom

2шт.

104070

HOUSING

RIVET, 3/16 x 7/8 rd-hd

2шт.

10

1878A

DISK, pea hopper driving

1шт.

10

1932A

DISK, pea hopper driving, for dropping peas between corn hills, special

1шт.

11

PLATE, seed, as ordered, see note

1шт.

12

RING, filler, as ordered, see note

1шт.

13

3029A

PLATE, pea hopper bottom

1шт.

14

2611A

BRACKET, pea hopper side post

1шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 5/16 wagon-box-hd (PN 135285)

4шт.

15

23116AC

HOPPER W/PEA CHUTE AND SIDE POST BRACKET, corn

1шт.

114660

SCREW, 5/16-18NC x 3/8 slotted-rd-hd mach

3шт.

16

13174AE

BOTTOM ASSY, corn hopper

1шт.

17

2580AA

SHAFT, pea hopper drive

1шт.

18

1877A

DISK, corn hopper driving

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

19

43251A

PLATE W/SPRINGS, corn hopper bottom

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

M79594

PIN,5/16" x 3 1/4"

5/16 x 3-1/4 std-hd

1шт.

20

13786AA

SPRING

bottom plate, .2161 in. OD, 31/32 long, 12-1/2 coils

2шт.

21

13787AA

CAP, spring

2шт.

22

23936A

PAWL

inner and outer cut-off, pair

1шт.

22

620152R91

PAWL, inner and outer cut-off, pair, special

1шт.

23

2064A

SPRING

cut-off and knocker, 3/8 ID, 1-5/8 long, 10 coils

4шт.

24

2000A

PIN, cut-off pawl hinge

1шт.

25

3005AB

CAP, corn hopper pawl

1шт.

14994R11

BOLT,5/16" - 18 x 3/4"

W/NUT, 5/16-18NC x 3/4 crg

1шт.

26

464336R11

KNOCKER

ARM, roller knocker, 1960 and since

1шт.

26

1118AC

PAWL

corn hopper knock-out, Serial Range: 1955-1960

1шт.

26

1223AB

PAWL

corn hopper knock-out, special

1шт.

26

3460AC

KNOCKER

PAWL, corn hopper knock-out, special

1шт.

27

13607AB

HINGE

GATE, pea and corn hopper hinged

2шт.

28

1886AX

LINK W/THUMBSCREW, latch

2шт.

29

13826A

THUMBSCREW, 5/16-18NC

2шт.

30

3030A

CHUTE, pea

1шт.

104235

RIVET,FH, 3/16" x 1/2"

6шт.

31

2250A

BRUSH, COMMUTATOR

BRUSH, pea hopper cut-off

1шт.

15038R11

BOLT

W/NUT, 5/16-18NC x 1-1/2 crg

1шт.

Q397

WASHER

11/32 ID x 3/4 OD x 16 ga plain

1шт.

32

3013A

CAP, pea hopper pawl

1шт.

14994R11

BOLT,5/16" - 18 x 3/4"

W/NUT, 5/16-18NC x 3/4 crg

1шт.

33

3460AA

PAWL, pea hopper knock-out

1шт.

33

1118AC

PAWL

pea hopper knock-out, special

1шт.

33

1223AA

PAWL, pea hopper knock-out, special

1шт.

3616AA

KNOCKER

tooth roller, for 82 cell plate, special

1шт.

43169AA

ARM

W/STUD ASSY, roller knocker, special

1шт.

464259R1

ROLLER

KNOCKER, roller, 1960 and since

1шт.
