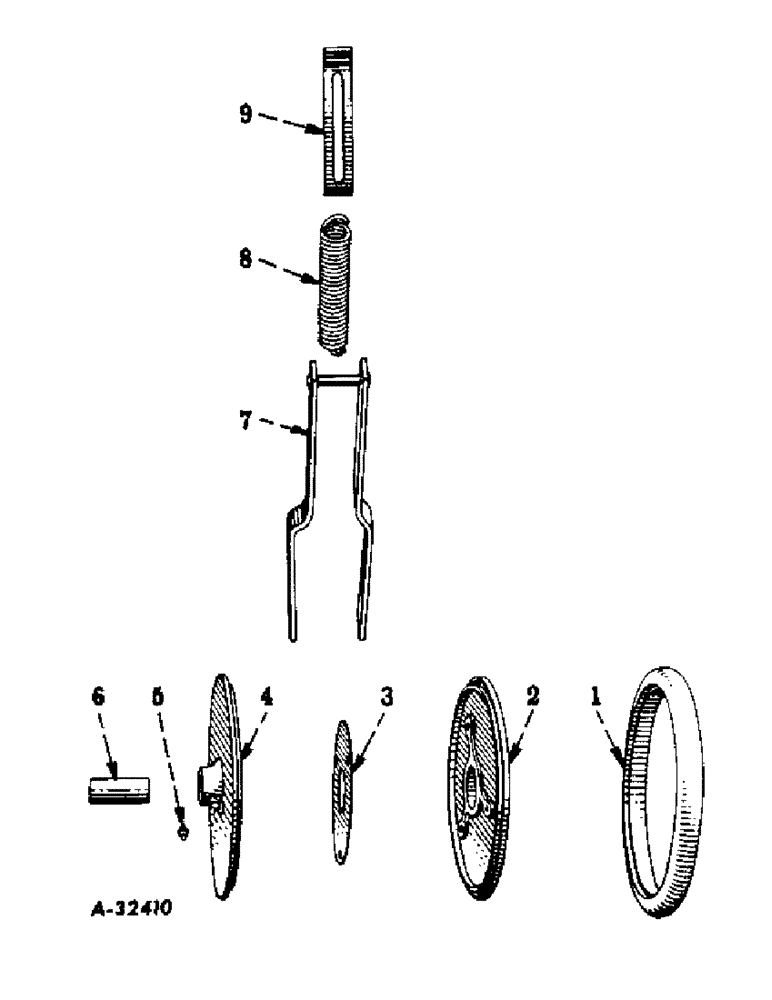

Запчасти Case IH 251 (X-31) - SEED FIRMING WHEEL ATTACHMENT, CANNOT BE USED WITH PLANTER

1

TIRE, press wheel, available only in pairs, order 623106R91

1шт.

2

WHEEL, seed firming, half, less lub fitting, for service, order 622352R11

1шт.

3

622358R1

GASKET

2шт.

4

622352R11

WHEEL, seed firming, half, with lub fitting

2шт.

17410R11

BOLT

W/NUT, 1/4-20NC x 3/4 hex-hd mach

6шт.

5

109358

FITTING, 5/8 drive type straight lub

2шт.

6

622357R1

JOURNAL

2шт.

13450R1

BOLT, 3/8-16NC x 3-1/2 mach

2шт.

551193R1

NUT, 3/8-16NC hex. self-locking

2шт.

7

622360R91

FRAME, drawbar, welded assy

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q3536

PIN

3/8 x 2-3/8 std-hd

2шт.

8

2482A

SPRING

wheel pressure

2шт.

9

622355R1

STRAP, adjusting

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

623106R91

TYRE/TIRE

TIRE, press wheel, 1 pair, not illustrated

1шт.
