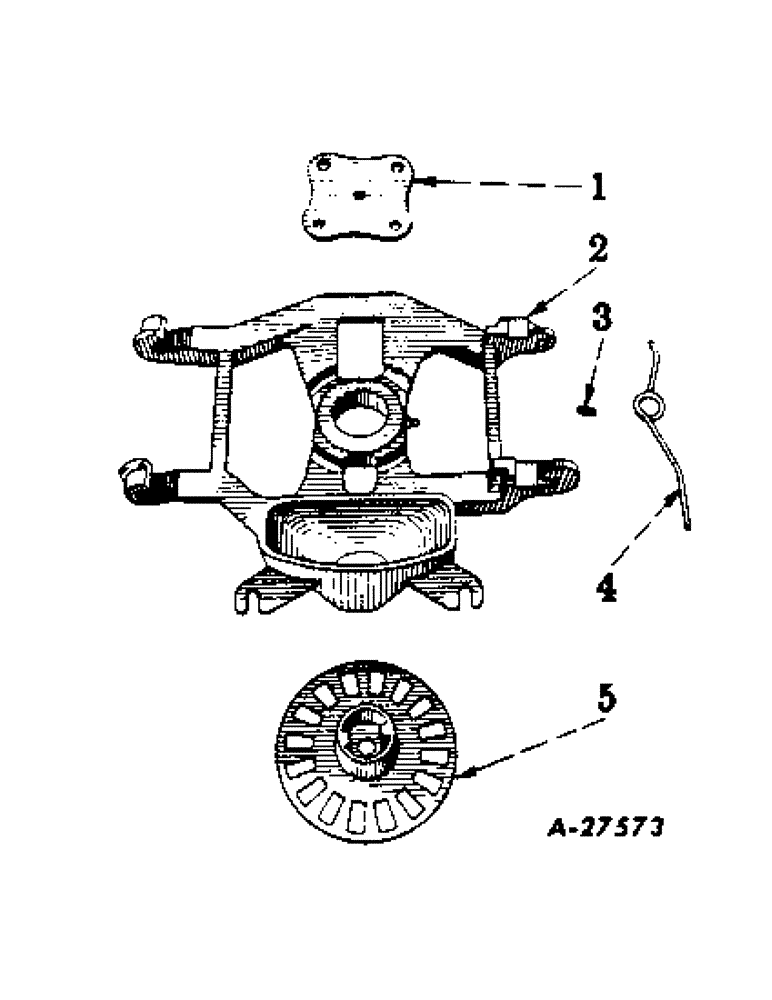

Запчасти Case IH 251 (X-30) - ADAPTER BRACKET, TO ADAPT TYPE C DUPLEX HOPPER

1

517093R1

PLATE, drive

2шт.

2

517091R11

BRACKET W/LUBRICATION FITTING, adapter

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q3532

AXLE PIN

PIN, 5/16 x 2-11/16 std-hd

2шт.

3

109358

FITTING, 5/16 straight lub drive fit

2шт.

4

PO17885

SPRING, hopper hold-down

2шт.

5

517092R1

PLATE, bearing

2шт.

13245R1

BOLT

3/8-16NC x 3/4 mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
