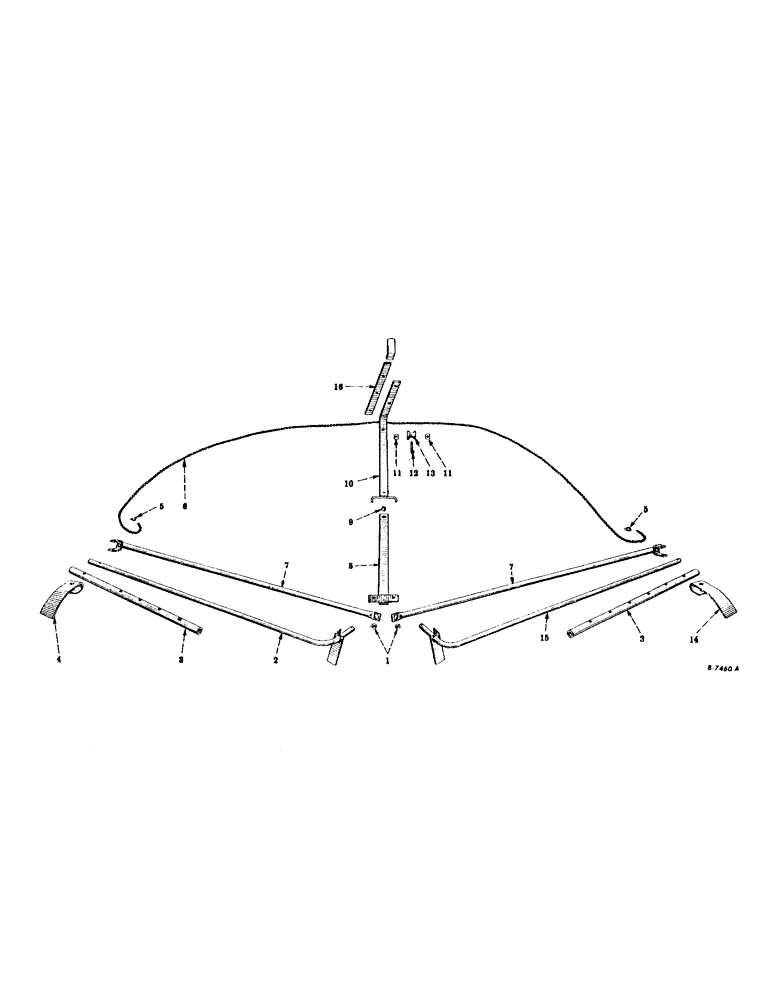

Запчасти Case IH 251 (X-27) - MARKER UNIT

1

W7138

PIPE

BUSHING, marker brace

2шт.

W6652

WASHER

15/32 ID x 1 OD x 16 ga plain

2шт.

2

622343R92

BAR, marker left

1шт.

623167R1

BOLT, 3/8-16NC x 1-3/4 hex-hd, 1-1/2 in. thread, adjusting stop bolt

1шт.

280136

NUT,3/8"-16, G8

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

Q3501

WASHER

25/32 ID x 1-1/4 OD x 16 ga plain

1шт.

3

620625R2

PIPE, marker

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, 5/16 x 1-7/8 std-hd

2шт.

4

13006A

SHOE, marker left

1шт.

17522R11

BOLT

W/NUT, 7/16-14NC x 2 hex-hd mach

1шт.

5

2488AA

HOOK, connecting link

2шт.

6

623665R91

CHAIN, marker, no. 4 Elwel, 149 in. long

1шт.

7

622341R93

BRACE, marker

2шт.

8

622849R91

STANDARD, marker

1шт.

9

615926R1

BUSHING

1шт.

10

623104R93

PIVOT, marker

1шт.

17472R11

BOLT

W/NUT, 7/16-14NC x 1-1/2 hex-hd mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

W6652

WASHER

15/32 ID x 1 OD x 16 ga plain

1шт.

11

620526R1

STOP, marker chain

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

12

620101R12

BOLT W/NUT, marker chain slide hook

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

3125A

SLIDE, marker chain

1шт.

14

13005A

SHOE, marker right

1шт.

17522R11

BOLT

W/NUT, 7/16-14NC x 2 hex-hd mach

1шт.

15

622848R91

BAR, marker right

1шт.

623167R1

BOLT, 3/8-16NC x 1-3/4 hex-hd, 1-1/2 in. thread, adjusting stop bolt

2шт.

280136

NUT,3/8"-16, G8

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

Q3501

WASHER

25/32 ID x 1-1/4 OD x 16 ga plain

1шт.

16

466515R1

EXTENSION, marker pivot bar

1шт.

BOLT W/NUT, 3/8-16NC x 1-1/4 mach

2шт.

WASHER, 3/8 lock

2шт.
