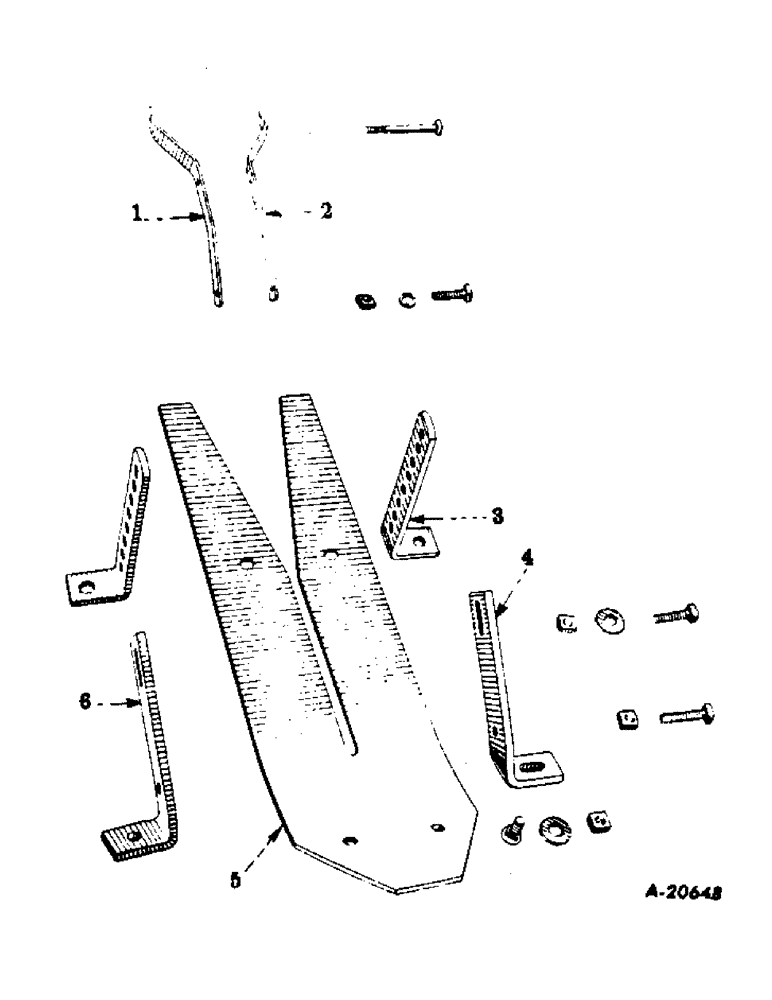

Запчасти Case IH 251 (X-26) - GAUGE SHOE ATTACHMENTS, FOR PLANTERS EQUIPPED WITH RUNNER

NLS

NO LONGER SERVICED

GAUGE SHOE ATT, for planters equipped with runner openers

1шт.

11

ROLLER

GAUGE SHOE ATT, for planters equipped with runner openers

1шт.

1

13317A

BRACE, gauge shoe right

2шт.

102670

RIVET

3/16 x 7/16 button-hd

2шт.

2

13318A

BRACE, gauge shoe left

2шт.

13413R11

BOLT W/NUT, 5/16-18NC x 3 mach

2шт.

13270R11

BOLT W/NUT, 3/8-16NC x 1-1/4 mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

13316A

BRACKET, adjusting rear

4шт.

13957R1

RIVET, 3/8 x 3/4 csk-hd

4шт.

4

13217A

BRACKET, front left

2шт.

13270R11

BOLT W/NUT, 3/8-16NC x 1-1/4 mach

2шт.

13291R11

BOLT W/NUT, 3/8-16NC x 1-1/2 mach

2шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8-16NC x 1 rd-hd plow

2шт.

105606

NUT

3/8-16NC sq

2шт.

Q1505

WASHER

13/32 ID x 1 OD x 16 ga plain

2шт.

5

13213A

SHOE, 6 in. wide, for no. 4 gauge shoe

2шт.

5

13745A

SHOE, 10 in. wide, for no. 11 gauge shoe

2шт.

6

13216A

BRACKET, front right

2шт.

13984R1

RIVET, 3/8 x 1 csk-hd

2шт.
