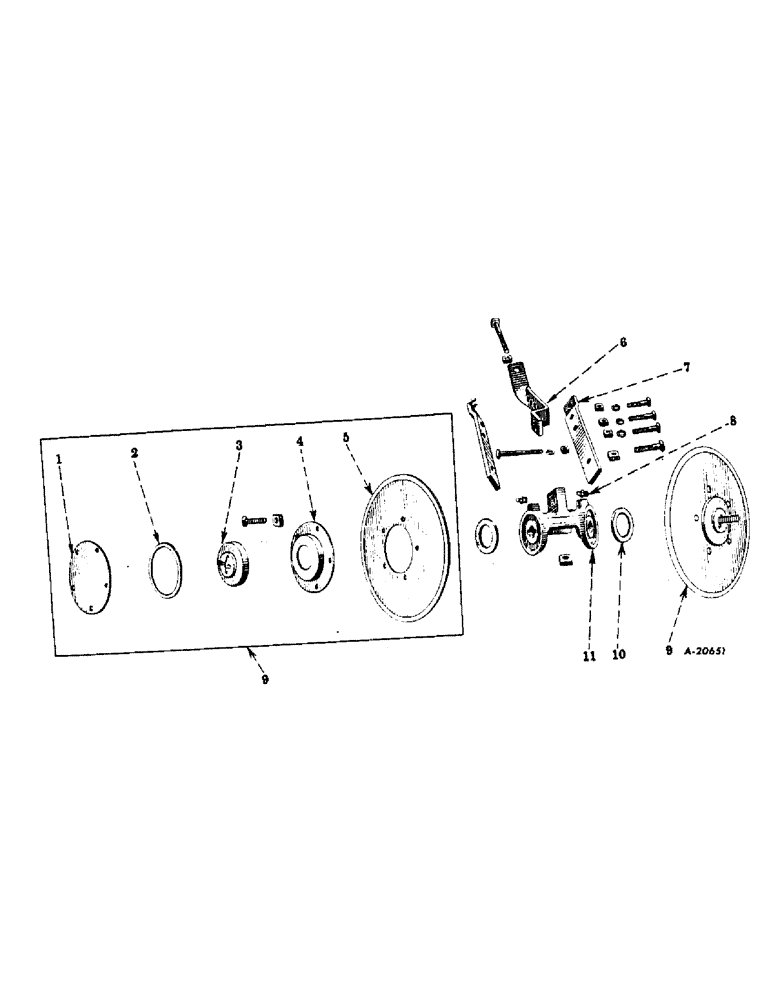

Запчасти Case IH 251 (X-22) - DISK FURROWING ATTACHMENT, FOR PLANTER EQUIPPED WITH RUNNER

9

CASTING

DISK FURROWING ATT, for planters equipped with runner openers

1шт.

1

W7213

PLATE, disk bearing cover

4шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 rd-hd

20шт.

2

M2

WASHER

GASKET, paper

4шт.

3

N748

BLOCK, bearing

4шт.

13292R11

BOLT W/NUT, 7/16-14NC x 1-1/2 mach

4шт.

4

W4227

HOUSING

bearing

4шт.

5

33248A

DISK

4шт.

6

33247A

BRACKET, adjusting disk

2шт.

13413R11

BOLT W/NUT, 5/16-18NC x 3 mach

2шт.

13315R11

BOLT W/NUT, 3/8-16NC x 1-3/4 mach

2шт.

13542R11

BOLT W/NUT, 7/16-14NC x 4-3/4 mach

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

33246A

CLAMP, disk anchor block

4шт.

13336R11

BOLT W/NUT, 3/8-16NC x 2 mach

4шт.

13292R11

BOLT W/NUT, 7/16-14NC x 1-1/2 mach

2шт.

8

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 in. straight lub

4шт.

9

23901A

DISK ASSY

4шт.

10

M10

FELT

WASHER, felt

4шт.

11

3486AA

BLOCK, disk anchor

2шт.
