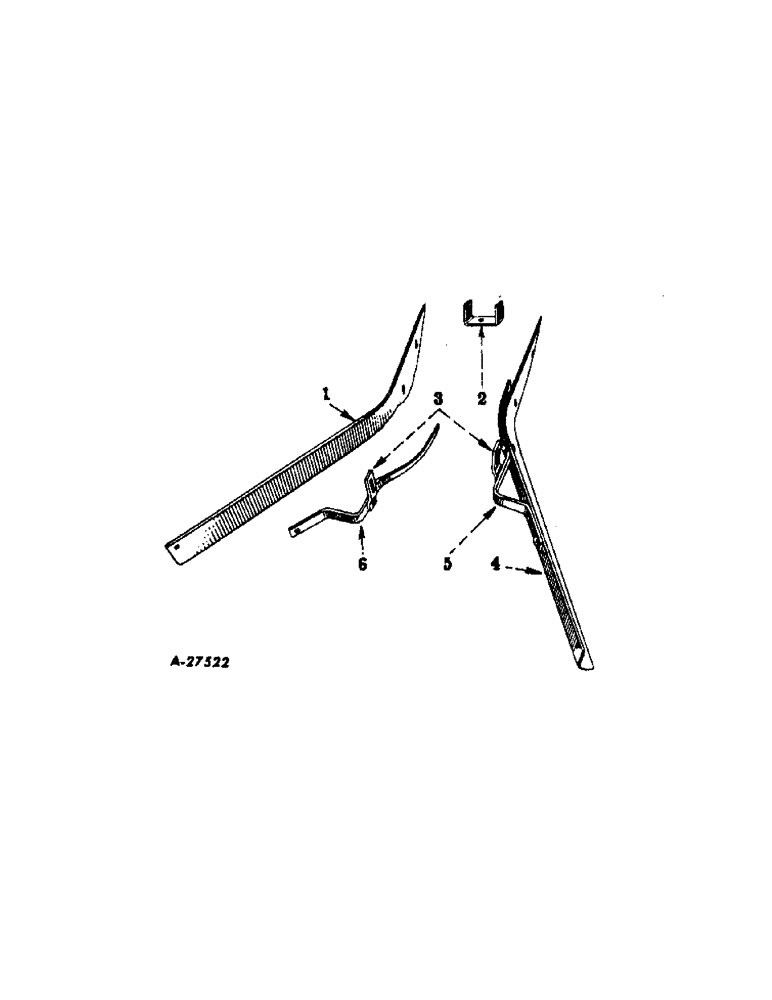

Запчасти Case IH 251 (X-21) - WING FURROWING ATTACHMENT

1

PO25091

WING, runner left

2шт.

13271R11

BOLT W/NUT, 7/16-14NC x 1-1/4 mach

4шт.

496-21047

WASHER

15/32 ID x 15/16 OD x 16 ga plain

8шт.

2

622221R1

BRACKET, wing attaching

2шт.

13542R11

BOLT W/NUT, 7/16-14NC x 4-3/4 mach

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

621649R1

BRACKET, vertical adjusting

4шт.

13255R11

BOLT W/NUT, 3/8-16NC x 1 mach

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

13/32 ID x 1 OD x 16 ga plain

8шт.

4

PO25090

WING, runner right

2шт.

5

621654R1

BRACE, wing right

2шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 rd-hd

2шт.

104097

RIVET,But Hd, 5/16" x 3/4"

5/16 x 3/4 rd-hd

4шт.

6

621653R1

BRACE, wing left

2шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 rd-hd

2шт.

104097

RIVET,But Hd, 5/16" x 3/4"

5/16 x 3/4 rd-hd

4шт.
