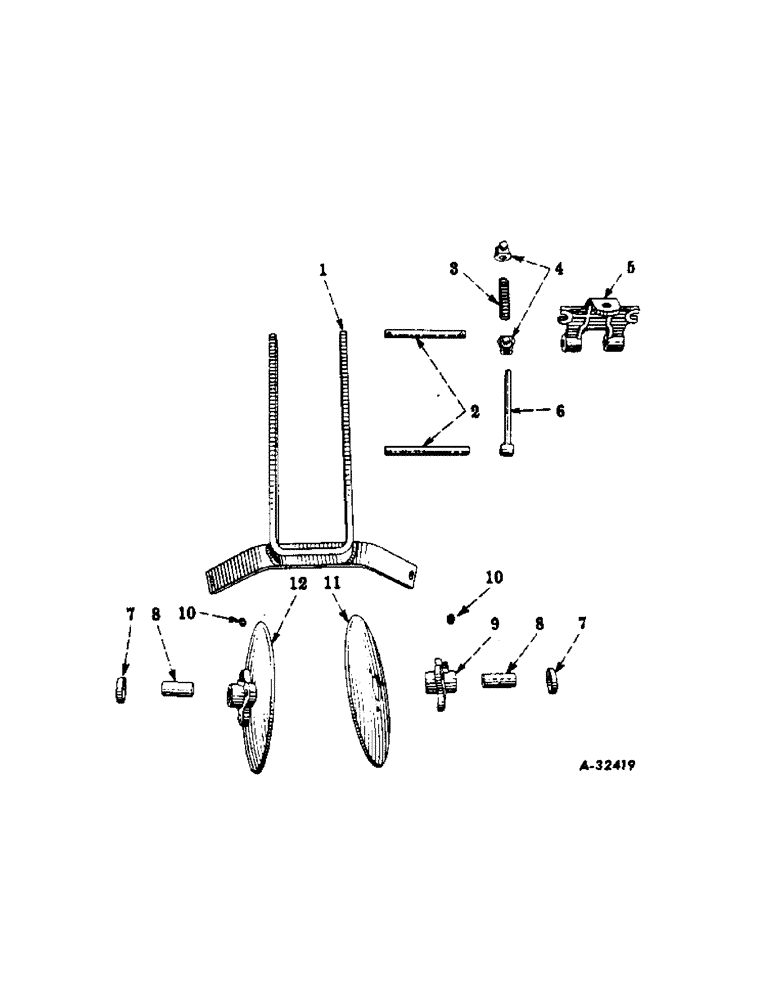

Запчасти Case IH 251 (X-21[A]) - DISK COVERING ATTACHMENT

1

623677R91

FRAME ASSY, draw

2шт.

2

623674R1

PIN, pivot

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

8шт.

3

M92

SPRING

pressure

2шт.

4

PO2593X

COLLAR

W/SET SCREW

4шт.

102892

SET SCREW

3/8-16NC x 1/2 cup-pt sq-hd set

4шт.

5

623672R1

BRACKET, attaching

2шт.

15108R1

BOLT, 3/8-16NC x 2-1/2 crg

4шт.

280136

NUT,3/8"-16, G8

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

13/32 ID x 1 OD x 16 ga plain

4шт.

6

623676R91

ROD ASSY, pressure spring

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q1597

WASHER

13/32 ID x 3/4 OD x 16 ga plain

2шт.

7

517957R1

WASHER

BAND, sand

4шт.

8

623129R1

BUSHING, for hub

4шт.

9

517948R11

HUB

W/FITTING, disk

4шт.

104068

RIVET, 3/16 x 3/8 rd-hd But Hd, 3/16" x 5/8"

12шт.

10

110161

FITTING, lubrication, in disk hub

4шт.

11

623128R1

DISC

DISK, covering

4шт.

12

623128R11

DISC

DISK W/HUB ASSY, covering

4шт.

17575R11

BOLT

W/NUT, 7/16-14NC x 2-1/2 hex-hd mach

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.
