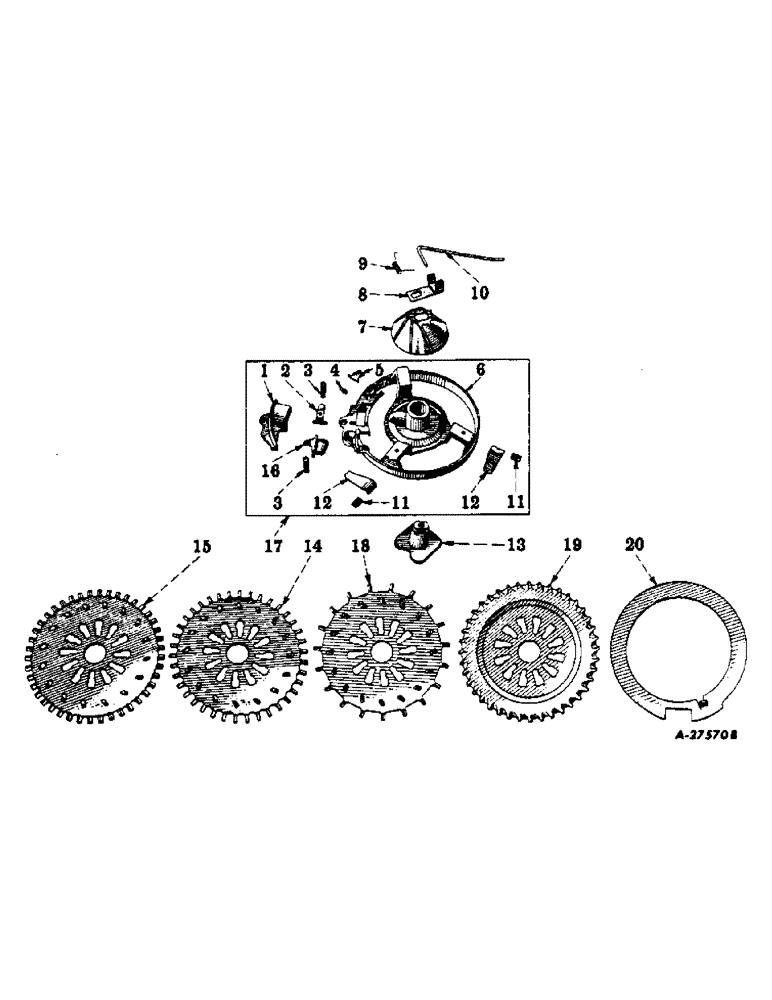

Запчасти Case IH 251 (X-17) - COTTON PLANTING EQUIPMENT, FOR COMBINATION HOPPER

622219R92

COTTON PLANTING EQUIPMENT, 2 sets, consists of, (2) sets cotton planting equipment 621736R93

1шт.

621736R93

COTTON PLANTING EQUIPMENT, consists of, (1) cotton planting equipment 622741R91, (1) carton 2 seed plates, include filler ring if required

1шт.

622741R91

COTTON PLANTING EQUIPMENT, consists of parts listed below except the seed plate marked special

1шт.

1

621714R2

CAP, cut-off and knocker

2шт.

114380

NUT

1/4-20NC sq

2шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4-20NC x 3/4 slotted-rd-hd mach

2шт.

2

621721R5

KNOCKER

2шт.

3

PO51

SPRING

cut-off and knocker, 3/8 OD, 7/8 long, 8 coils

4шт.

4

109358

FITTING, 5/16 drive type straight lub

2шт.

5

13607AB

HINGE

GATE, hinged

2шт.

6

BOTTOM, hopper, order 622185R93, ref. no. 17

1шт.

7

621716R1

PLATE

agitator

2шт.

8

621725R92

ARM

main piece agitator

2шт.

15142R11

BOLT

W/NUT, 3/8-16NC x 3 crg

2шт.

Q1505

WASHER

13/32 ID x 1 OD x 16 ga plain

2шт.

9

PO26760

SPRING

agitator arm

2шт.

10

622259R1

ARM

agitator

2шт.

11

445135

NUT

seed spring

1шт.

12

PO16047A

VALVE SPRING

SPRING, flat seed

4шт.

13

621715R3

STUD

agitator drive

2шт.

14

621717R3

PLATE

seed, 38 large cells

2шт.

15

621719R3

PLATE

seed, 42 small cells

2шт.

16

621723R1

KNIFE

CUT-OFF

2шт.

17

622185R94

HOPPER

BOTTOM ASSY, hopper

2шт.

18

622424R1

PLATE

seed, 19 extra large cells, for gin run cotton seed, special

2шт.

19

622480R1

PLATE

seed, 40 cells, 30/64 x 7/32, 1/8 thick, for acid and machine delinted cotton seed

2шт.

20

622481R1

RING

filler, 1/8 thick, for seed plate, 622480R1

2шт.
